EJ050NA-01G

Your location: Home > Products > INNOLUX > 5.0" >
  • EJ050NA-01G
  • Module No:EJ050NA-01G
  • Brand:INNOLUX
  • Size:5.0"
  • Resolution:800x480
  • Brightness:350 cd/m2
  • Viewing angle:70/70/50/70
  • Interface:Parallel RGB
  • CR:500:1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name EJ050NA-01G
    Screen Size 5.0”
    Pixel Number 800(RGB)X480
    Active Area(mm) 108x 64.8 (HxV) mm
    Outline(mm) 120.7x 76.3x 3.3 (HxVxD) mm
    Treatment clear
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 70/70/50/70 (Typ.)(CR≥10)
    Response 10/15 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 16.7M,50% NTSC
    Backlight 20K hours
    Net Weight 58.5g (Typ.)
    Touchscreen Without
    Signal Type/interface Type Parallel RGB (1 ch, 8-bit) , FPC , 50 pins
    Voltage Supply 3.3V (Typ.)
    Max. Ratings Storage Temp.: -30 ~ 80 °C
    Operating Temp.: -20 ~ 70 °C
    Package 160pcs/carton;
    Carton size:  530x355x255 mm

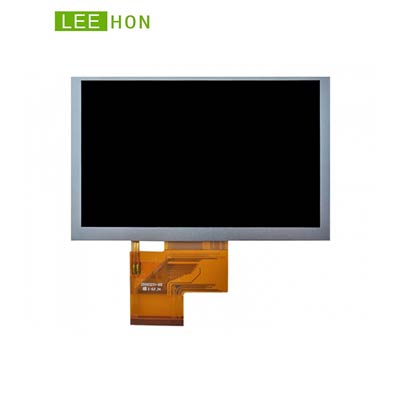

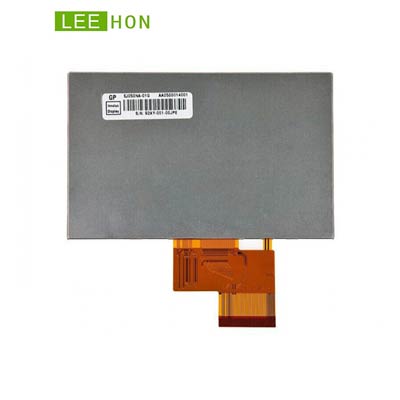

  • Innolux 5.0" TFT lcd screen panel EJ050NA-01G with resolution 800x480, suitable for automotive display, portable navigation and digital photo frame, Video door phone.
    new and original quality, stable supply for years.  fast delivery time.
