| Manufacturer | Innolux |

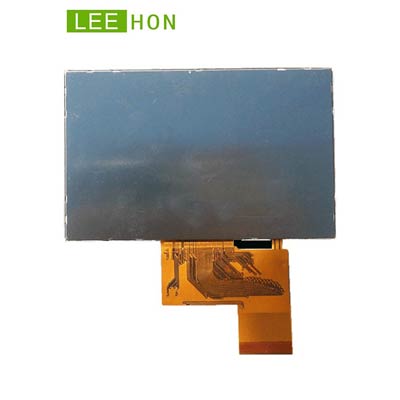

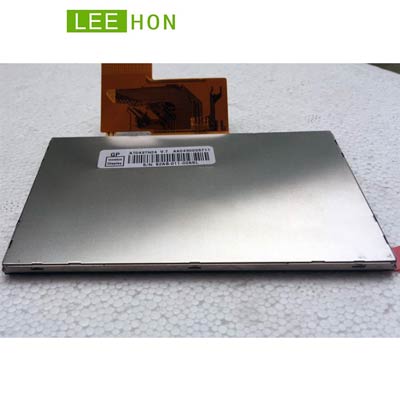

| Model Name | AT043TN24 V.7 |
| Screen Size | 4.3 inch |
| Pixel Number | 480(RGB)×272 ,WQVGA |
| Active Area(mm) | 95.04(W) x 53.856(H) |
| Outline(mm） | 105.5(W) x 67.2(H) x 4.05(D) |
| Treatment | Anti-glare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 500 : 1 (Typ.) (TM) |
| Viewing Angle | 70/70/50/70 |
| Response | 10/15 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , 20K hours , without driver |
| Net Weight | 59.0g (Typ.) |
| Touchscreen | 4-wire resistance touch screen |
| Signal Type/interface Type | Parallel RGB (1 ch, 8-bit) , 40 pins , FPC |
| Voltage Supply | +3.3 V (Typ.) |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
Innolux original pacakge; 160 pcs/carton; Carton size : 530(L) x 355(W) x 255(H)mm |
