| Manufacturer | INNOLUX |
| Model Name | M236HJJ-L31 |
| Screen Size | 23.6 inch |
| Pixel Number | 1920(RGB)×1080 , Full HD |
| Active Area(mm) | 521.28 × 293.22 (H×V) |
| Outline(mm） | 544.8 × 320.5 ×11 (H×V×D) |
|
Bezel Area(mm)
|
525.22 × 297.22 (H×V) |
| Treatment |
AG type, 3H hard coating, Haze :25%
|
| Luminance | 250 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 20 (Typ.)(Tr/Td) ms |
| Display Mode | MVA , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 40K hours , without Driver |
| Net Weight | 2.31±0.11Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Voltage Supply | +5.0 V |
| Max. Ratings | Storage Temp.: -20 ~ +60 (°C) Operating Temp.: 0 ~ +50 (°C) |
| Package | Innolux Original package 11 pcs/ctn; weight : 30.1Kgs; size : 620(L) x 348(W) x 430(H) mm |

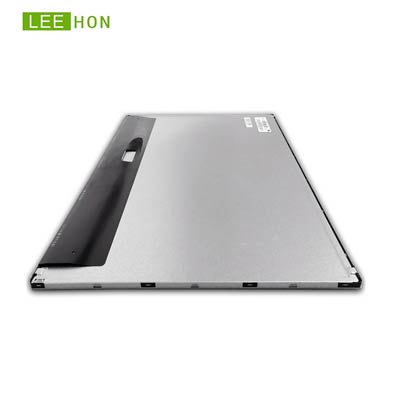

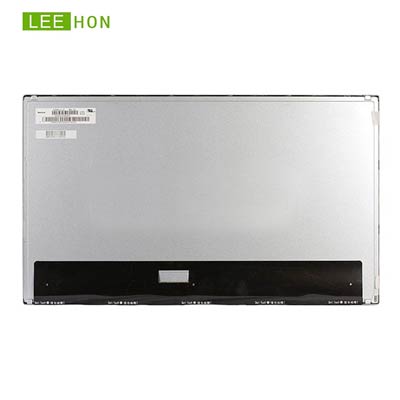

Innolux 23.6 inch tft lcd ips panel M236HJJ-L31 with 1920(RGB)x1080 Full HD resolution, brightness 250 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Digital signage.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
23.6 inch 1920*1080 Full HD screen original innolux tft ips display M236HJJ-L31 support high contrast 3000:1 and LVDS interface.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
