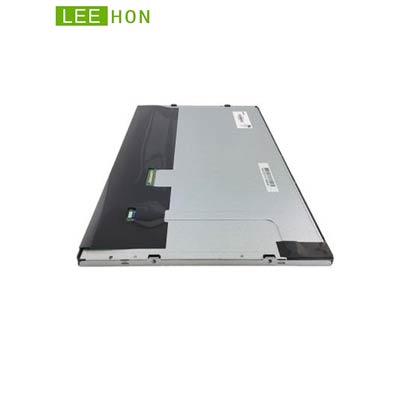

| Manufacturer | INNOLUX |
| Model Name | G156HCE-LN1 |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) | 344.16 x 193.59 (H×V) |
| Outline(mm） | 363.8 x 215.9 x 9.3 (H×V×D) |
| Pixel Pitch(mm) | 0.17925 x 0.17925 (H×V) |
| Treatment |
Hard Coating (3H), Anti-Glare
|
| Luminance | 350 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89(CR≥10) Left / Right/UP /Down |
| Response time | 14/11 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black, Transmissive |
| Color Depth | 16.7M , 73% NTSC |
| Backlight | WLED, 50K hours, with LED Driver |
| Net Weight | 1.10Kgs |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 40 pins |
| Voltage Supply | +3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
Innolux Original packa; 18 pcs/ctn; weight : 13.2Kgs; size : 465 (L)mm x 362 (W)mm x 314 (H) mm |
