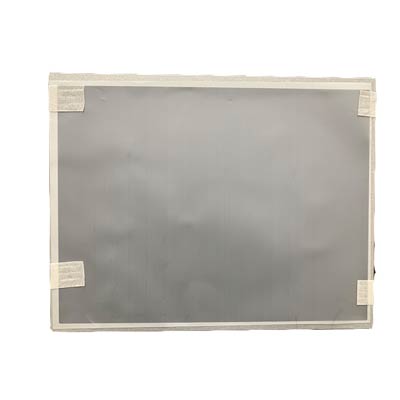

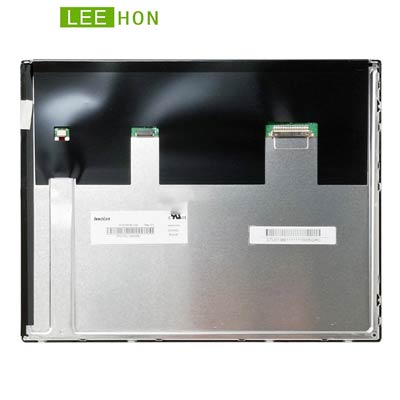

G121XCE-L02

Your location: Home > Products > INNOLUX > 12.1" >
  • Module No:G121XCE-L02
  • Brand:INNOLUX
  • Size:12.1 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:500 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name G121XCE-L02
    Screen Size 12.1 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 245.76 x 184.32 (HxV)
    Outline(mm) 260.5(W) x 204.0(V) x 8.4(D)mm
    Bezel Area(mm) 269.12 x 173 (HxV)
    Treatment Hard coating (3H) , Anti-Glare
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89(CR≥10) Left / Right / Up / Down
    Response 13/12 (Typ.)(Tr+Td) ms
    Work Mode AAS , Normally black , Transmissive
    Color Depth 262K/16.2M , 72% NTSC
    Backlight WLED , 50K hours , With LED Driver
    Net Weight 510g
    operating frequency 60Hz
    Touchscreen Without, RTP+CTP for options
    Signal Type/interface Type LVDS(1 ch, 8 bit) , 20 pins , connector
    Voltage Supply +3.3 V (Typ.)
    Temperature Storage Temp.: -40 ~ +80 (°C)
    Operating Temp.: -30 ~ +70 (°C)
    Package Innolux Original Package;
    18 pcs/ctn;
    weight : 10.9Kgs;
    size : 465 (L)mm x 362 (W)mm x 314 (H)mm

  • Innolux 12.1" TFT LCD G121XCE-L02 Replace For G121X1-L04.
    Innolux 12.1 inch tft lcd panel G121ICE-L02 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and its storage temperature is  -40 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original Innolux 12.1 Inch 1024x768 XGA TFT LCD Panel IPS Display For Industry G121ICE-L02 with 500nit, LVDS cables and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
