| Manufacturer | Innolux |

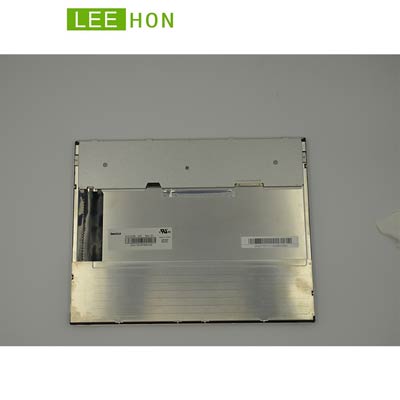

| Model Name | G121AGE-L03 |
| Screen Size | 12.1 inch |
| Pixel Number | 800(RGB)×600 , SVGA |
| Active Area(mm) | 246.0 x 184.5 (H×V) |
| Outline(mm） | 260.5 x 204.0 x 8.4 (H×V×D) |
| Pixel Pitch(mm) | 0.3075 x 0.3075 (H×V) |
| Treatment |
Hard coating (3H), Anti-glare
|
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89(CR≥10) Left / Right/UP /Down |
| Response time | 13/12 (Typ.)(Tr/Td) ms |
| Display Mode | Super MVA , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 50% NTSC |
| Backlight | WLED , 50K hours, with LED Driver |
| Net Weight | 530g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | +3.3V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
Innolux Original package; 22 pcs/ctn; weight : 19.0Kgs; size : 540 (L)mm x 450 (W)mm x 275 (H)mm |
