| Manufacturer | Innolux |

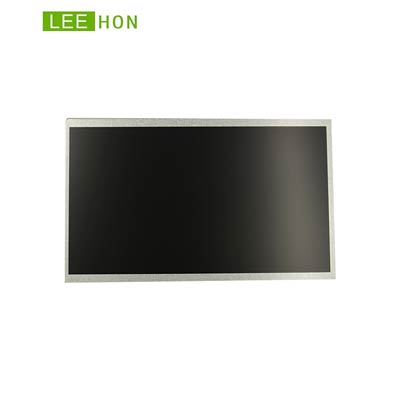

| Model Name | G101ICE-LH1 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 216.96 x 135.6 (H×V) |
| Outline(mm） | 230.7 x 152.55 x 6.5 (H×V×D) |
| Pixel Pitch(mm) | 0.1695 x 0.1695 (H×V) |
| Treatment | Hard Coating 3H , Anti-Glare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88(CR≥10) Left / Right/UP /Down |
| Response time | 13/12 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 52% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 315g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +5.0 V |
| Max. Ratings |
Storage Temp.: -40 ~ +85 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package |
Innolux Original package; 28 pcs/ctn; size : 435(L)mm x 350(W)mm x 275(H)mm |
