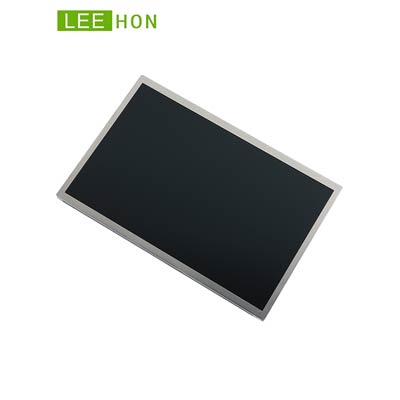

| Manufacturer | Innolux |
| Model Name | G101ICE-L02 |
| Screen Size | 10.1 inch |
| Pixel Number | 1280(RGB)×800 , WXGA |
| Active Area(mm) | 216.96 x 135.60 (H×V) |
| Outline(mm） | 231 x 153.5 x 8.5 (H×V×D) |
| Pixel Pitch(mm) | 0.1695 x 0.1695 mm (H×V) |
| Treatment |
Hard Coating (3H), Anti-Glare
|
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 85/85/85/85(CR≥10) Left / Right/UP /Down |
| Response time | 14/11 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black, Transmissive |
| Color Depth | 262K/16.7M , 52% NTSC |
| Backlight | WLED, 50K hours, with LED Driver |
| Net Weight | 350g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3V |
| Max. Ratings |
Storage Temp.: -25 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
Innolux Original package; 28 pcs/box; size : 490(L)mm x 320(W)mm x 250(H)mm; weight : 12.02Kgs |
