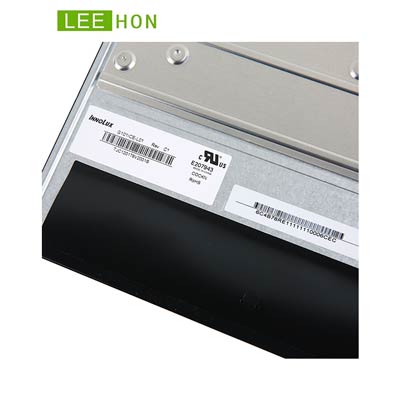

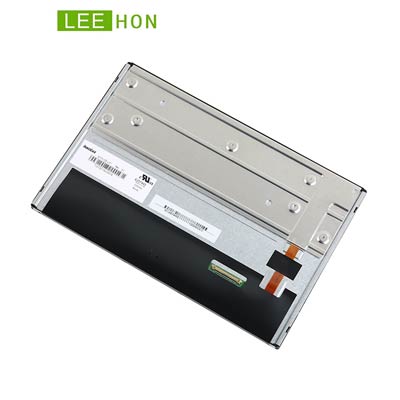

G101ICE-L01

Your location: Home > Products > INNOLUX > 10.1" >
  • Module No:G101ICE-L01
  • Brand:Innolux
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:500 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 40 pins
  • CR:800:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  Innolux
    Model Name G101ICE-L01
    Screen Size 10.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 216.96 x 135.60 (H×V)
    Outline(mm) 230.7 x 152.55 x 6.5 (H×V×D)
    Pixel Pitch(mm) 0.1695 x 0.1695 (H×V)
    Treatment
    Hard Coating (3H), Anti-Glare
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10) Left / Right/UP /Down
    Response time 14/11 (Typ.)(Tr/Td) ms
    Display Mode AAS , Normally black , Transmissive
    Color Depth 262K/16.7M , 52% NTSC
    Backlight WLED , 50K hours, with LED Driver
    Net Weight 375g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 40 pins
    Voltage Supply +3.3V
    Max. Ratings Storage Temp.: -25 ~ +70 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux Original package;
    28 pcs/ctn;
    weight : 12.02Kgs;
    size : 435(L)mm x 350 (W)mm x 275 (H)mm

  • Innolux 10.1 inch tft lcd panel G101ICE-L01 with 1280(RGB)x800 WXGA resolution , brightness 500 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and its storage temperature is  -25 ~ +70 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Original A Grade 10.1 inch 1280x800 Innolux TFT LCD Panel WXGA Screen G101ICE-L01 With Good View IPS, 500nits, LVDS 40pins and Customizable Touchscreen.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
