EJ101IA-01G

Your location: Home > Products > INNOLUX > 10.1" >
  • Module No:EJ101IA-01G
  • Brand:INNOLUX
  • Size:10.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:550 cd/m²
  • Viewing angle:85/85/85/85 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 40 pins
  • CR:1000:1
  • Operating Temp.: -10 ~ +60 (℃)
  • Parameters
  • Description
  • Manufacturer Innolux
    Model Name EJ101IA-01G
    Screen Size 10.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 216.96(H) × 135.60(V)
    Outline(mm) 229.46(W) x 149.1(H) x 2.50(D)
    Treatment HC
    Luminance 550 cd/m²
    Contrast Ratio 1000:1
    Viewing Angle 85/85/85/85 (Typ.)
    Response 10/15ms
    Work Mode IPS , normally black mode , Transmissive
    Color Depth 16.7M , 50% NTSC
    Backlight WLED , 15k Hours , without driver
    Net Weight 183g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 40 pins
    Voltage Supply +3.3 V
    Temperature Storage Temp.: -20 ~ +70 (°C)
    Operating Temp.: -10 ~ +60 (°C)
    Package Innolux original package;
    34 pcs/ctn
    weight : 10.32Kgs;
    size : 530(L)mm x 367(W)mm x 260(H)mm

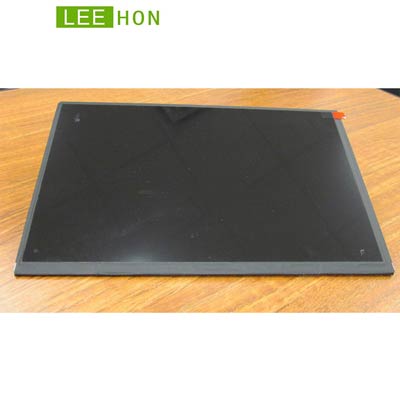

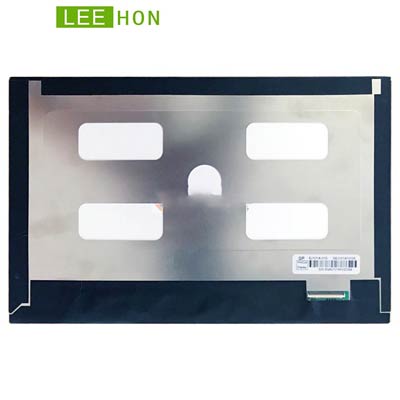

  • Innolux 10.1 inch tft lcd ips panel EJ101IA-01G with 1280(RGB)x800 WXGA resolution, brightness 550 cd/m². This lcd display is working temperature is -10 ~ +60 (°C) and it's storage temperature is  -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original Innolux 10.1 Inch 1280x800 WXGA TFT LCD Panel IPS LCD Display For Industry EJ101IA-01G with 550nits, Touchscreen And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
