| Manufacturer | Innolux |
| Model Name | G104XCE-LH1 |
| Screen Size | 10.4 inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 210.4 x 157.8 (H×V) |
| Outline(mm） | 225.5 x 176.5 x 8.7 (H×V×D) |
| Pixel Pitch(mm) | 0.0685 x 0.0685 (H×V) |
| Treatment | Anti-Glare |
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88(CR≥10) Left / Right/UP /Down |
| Response time | 13/12 (Typ.)(Tr/Td) ms |
| Display Mode | AAS , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 335g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
Innolux Original package; 24 pcs/ctn; weight : 13.1Kgs; size : 490(L)mm x 350(W)mm x 320(H)mm |

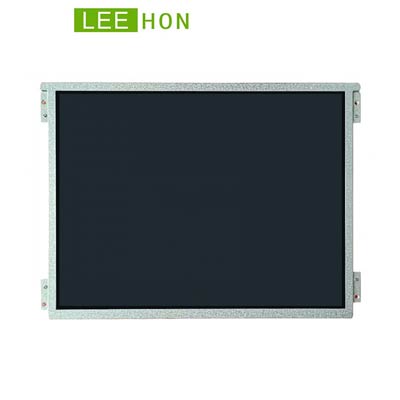

Innolux 10.4 inch tft lcd ips panel G104XCE-LH1 with 1024(RGB)x768 XGA resolution, brightness 350 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use And Outdoor Highlight.
Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
High Brightness 10.4 Inch XGA Innolux TFT LCD Panel IPS LCD Display For Outdoor Highlight G104XCE-LH1 with 1000nit, LVDS 30 Pin and Driver board.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
