G104XCE-L01

Your location: Home > Products > INNOLUX > 10.4" >
  • Module No:G104XCE-L01
  • Brand:Innolux
  • Size:10.4 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:500 cd/m²
  • Viewing angle:88/88/88/88 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name G104XCE-L01
    Screen Size 10.4 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 210.4 x 157.8 (H×V)
    Outline(mm) 225.5 x 176.3 x 8.7 (H×V×D)
    Pixel Pitch(mm) 0.0685 x 0.2055 (H×V)
    Treatment
    Anti Glare
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 1000: 1 (Typ.) (TM)
    Viewing Angle 88/88/88/88(CR≥10) Left / Right/UP /Down
    Response time 13/12 (Typ.)(Tr/Td) ms
    Display Mode AAS , Normally black, Transmissive
    Color Depth 262K/16.7M , 72% NTSC
    Backlight WLED , 50K hours, with LED Driver
    Net Weight 335g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package Innolux Original package;
    24 pcs/ctn;
    weight : 13.1Kgs;
    size : 490(L)mm x 350(W)mm x 320(H)mm

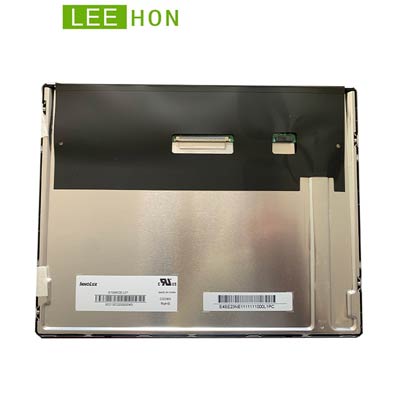

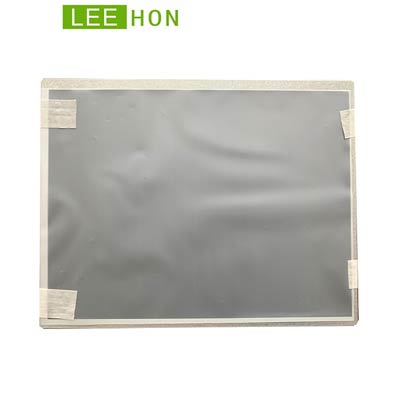

  • Innolux 10.4 inch tft lcd panel G104XCE-L01 with 1024(RGB)x768 XGA resolution, brightness 500 cd/m². This lcd display is working temperature is -30 ~ +85 (°C) and its storage temperature is  -30 ~ +85 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    Hot Sale 10.4 Inch 1024x768 XGA Original A Grade Innolux TFT LCD Panel IPS Display For Industrial G104XCE-L01 With 500nits, LVDS 30pins And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
