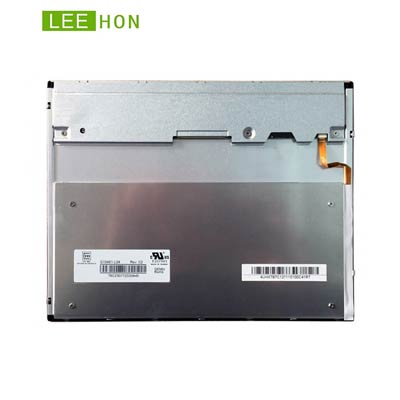

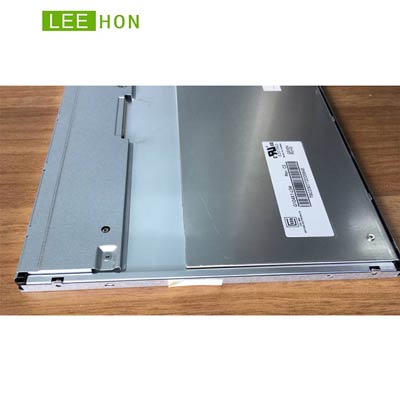

| Manufacturer | INNOLUX |
| Model Name | G104X1-L04 |
| Screen Size | 10.4 Inch |
| Pixel Number | 1024(RGB)×768 , XGA |
| Active Area(mm) | 210.4 × 157.8 (H×V) |
| Outline(mm） | 225.5 × 176.8 × 8.7 (H×V×D) |
| Pixel Pitch(mm) | 0.0685 × 0.2055 (H×V) |
| Treatment | Anti Glare |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (CR≥10) Left / Right/UP /Down |
| Response time | 14/11 (Typ.)(Tr/Td) ms |
| Display Mode | Super MVA , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 55% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 480g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package |
Innolux original package; 18 pcs/ctn; weight : 11.23Kgs; size : 465(L) x 362(W) x 314(H)mm |
