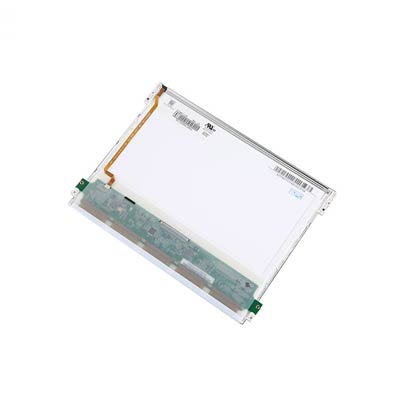

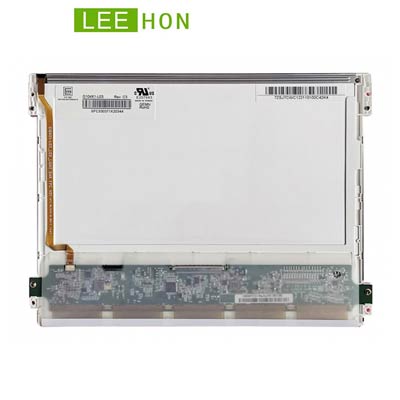

G104X1-L03

Your location: Home > Products > INNOLUX > 10.4" >
  • Module No:G104X1-L03
  • Brand:Innolux
  • Size:10.4 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:88/88/88/88 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name G104X1-L03
    Screen Size 10.4 inch
    Pixel Number 1024(RGB)×768 , XGA
    Active Area(mm) 210.4 x 157.8 (H×V)
    Outline(mm) 238.6 x 175.8 x 7.5 (H×V×D)
    Pixel Pitch(mm) 0.0685  x 0.2055 (H×V)
    Treatment
    Anti Glare
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 88/88/88/88 (CR≥10) Left / Right/UP /Down
    Response time 14/11 (Typ.)(Tr/Td) ms
    Display Mode Super MVA , Normally black , Transmissive
    Color Depth 262K/16.7M , 53% NTSC
    Backlight WLED , 30K hours , with LED Driver
    Net Weight 280g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -20 ~ +7(°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package Innolux Original package;
    18 pcs/box;
    size : 465(L) x 362(W) x 314(H) mm;
    weight : 8.3Kgs

  • Innolux 10.4 inch tft lcd ips panel G104X1-L03 with 1024(RGB)x768 XGA resolution, brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is  -20 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial use And Outdoor Highlight.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 10.4 inch 1024x768 XGA LCD Panel Original Innolux TFT LCD Screen G104X1-L03 With 350nits, LVDS 30pins And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
