| Manufacturer | Innolux |

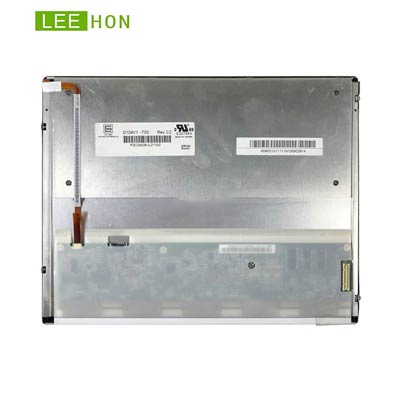

| Model Name | G104V1-T03 |
| Screen Size | 10.4 Inch |
| Pixel Number | 640(RGB)×480 , VGA |
| Active Area(mm) | 211.2 × 158.4 (H×V) |
| Outline(mm） | 225.5 × 176.3 × 7.8 (H×V×D) |
| Pixel Pitch(mm) | 215.4 × 161.8 (H×V) |
| Treatment | Hard coating 3H , Anti-glare (Haze 25%) |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1500 : 1 (Typ.) (TM) |
| Viewing Angle | 88/88/88/88 (CR≥10) Left / Right/UP /Down |
| Response time | 17/9 (Typ.)(Tr/Td) ms |
| Display Mode | Super MVA , Normally black , Transmissive |
| Color Depth | 262K , 55% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 445g |
| Touchscreen | without |
| Signal Type/interface Type | CMOS/TTL (1 ch, 6-bit) , 31 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package |
Innolux Original package; 16 pcs/ctn; weight : 15.0Kgs; size : 465(L) x 362(W) x 314(H)mm |
