LQ035NC111

Your location: Home > Products > INNOLUX > 3.5" >
  • Module No:LQ035NC111
  • Brand:Innolux
  • Size:3.5 inch
  • Resolution:320(RGB)×240 , QVGA
  • Brightness:300 cd/m²
  • Viewing angle:60/60/50/55 (Typ.)
  • Interface:Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins
  • CR:400:1
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  INNOLUX
    Model Name LQ035NC111
    Screen Size 3.5 inch
    Pixel Number 320(RGB)×240 , QVGA
    Active Area(mm) 70.08 x 52.56 (H×V)
    Outline(mm) 76.9 x 63.9 x 3.3 (H×V×D)
    Pixel Pitch(mm) 73 x 219 (H×V)
    Treatment Anti-glare
    Luminance 300 cd/m² (Typ.)
    Contrast Ratio 400 : 1 (Typ.) (TM)
    Viewing Angle 60/60/50/55(CR≥10) Left / Right/UP /Down
    Response time 10/15 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white, Transmissive
    Color Depth 16.7M , 60% NTSC
    Backlight WLED, 10K hours, without  driver
    Net Weight 30.0g
    Touchscreen without
    Signal Type/interface Type Digital RGB (8/24-bit) + SPI, CCIR601/656 , FPC , 54 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package INNOLUX Original package

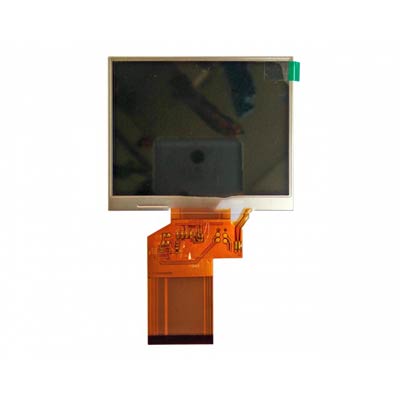

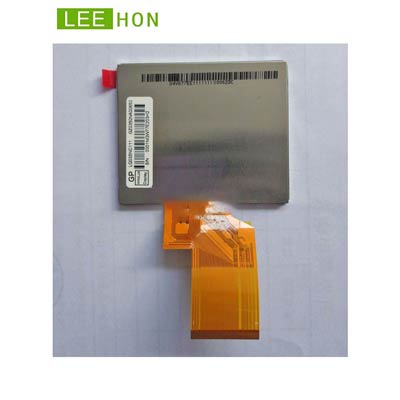

  • Innolux 3.5 inch tft lcd panel LQ035NC111 with 320(RGB)x240 QVGA resolution, brightness 300 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is  -30 ~ +80 (°C). Based on it is white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    Original Innolux TFT LCD Display 3.5 Inch 320x240 QVGA LCD Screen RGB Module FPC 54 Pin LQ035NC111 With 300nit, 60Hz.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
