| Manufacturer | AUO |
| Model Name | G084SN05 V904 |
| Screen Size | 8.4 inch |
| Pixel Number | 800(RGB)×600 , SVGA |

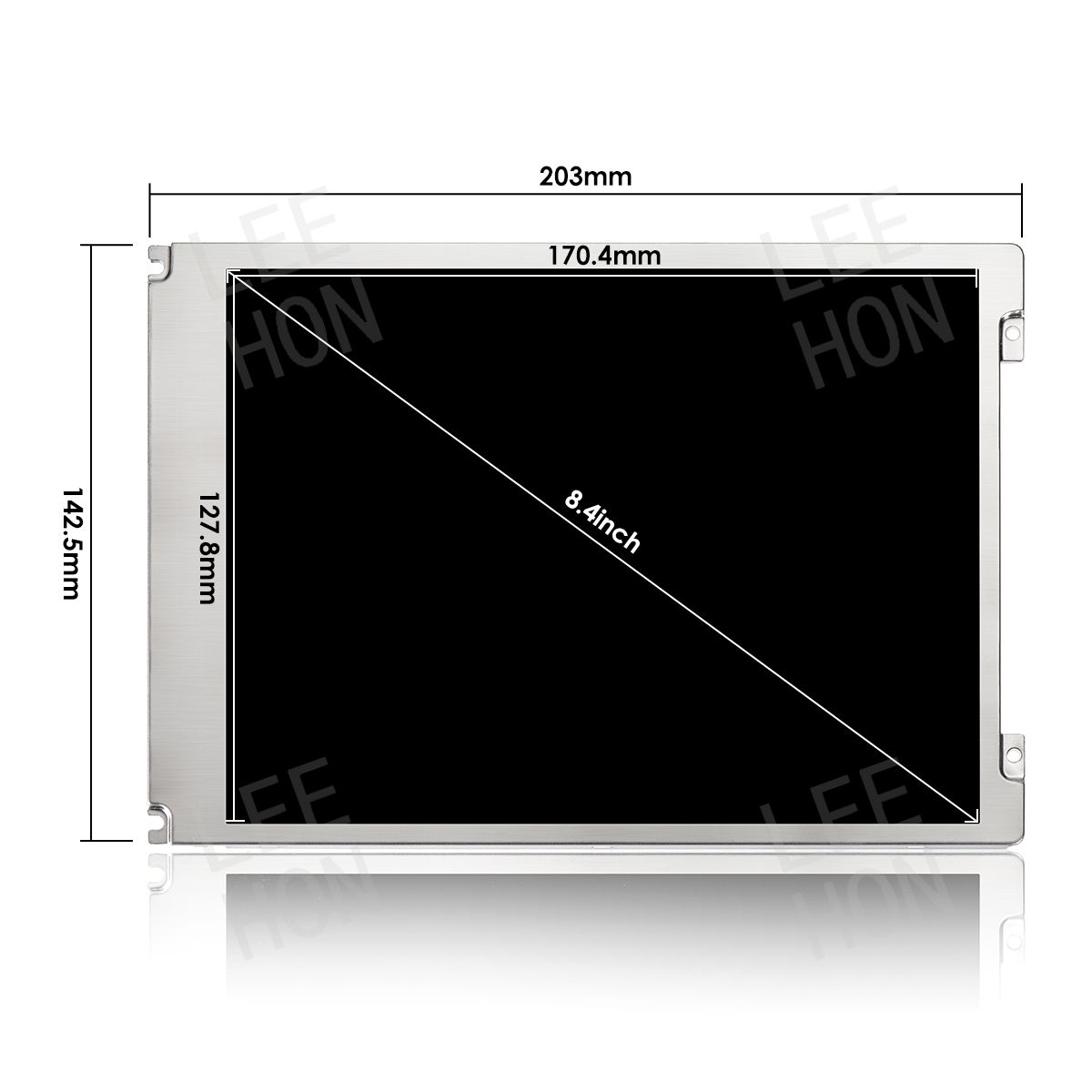

| Active Area(mm) | 170.4(H) x 127.8(V) |
| Outline(mm） | 203.0(W) x 142.5(H) x 8.0(D) |
| Pixel pitch(mm) | 0.213 x 0.213 |
| Treatment | Anti-glare , Hardness 3H |
| Luminance | 450 cd/m² (Typ.) |
| Contrast Ratio | 600 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/80/60 (Typ.) |
| Response | 20/10 (Typ.)(Tr/Td) ms |
| Work Mode | TN, Normally white, Transmissive |
| Color Depth | 262K/16.2M , 45% NTSC |
| Backlight | WLED, 50K hours, with LED Driver |
| Net Weight | 250g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 20 pins |
| Voltage Supply | 3.3V |
| Max. Ratings |
Storage Temp. : -30 ~ +80 (°C) Operating Temp. : -30 ~ +80 (°C) |
| Package |
AUO Original Package; 30 pcs/ctn; weight : 12.0kgs; size : 405(L)mm x 328(W)mm x 301(H)mm |
