G070VW01 V0

Your location: Home > Products > AUO > 7.0" >
  • Module No:G070VW01 V0
  • Brand:AUO
  • Size:7 inch
  • Resolution:800(RGB)×480 , WVGA
  • Brightness:400 cd/m²
  • Viewing angle:80/80/80/80 (CR≥10)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:750:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G070VW01 V0
    Screen Size 7 inch
    Pixel Number 800(RGB)×480 , WVGA
    Active Area(mm) 152.4 × 91.44 (H×V)
    Outline(mm) 170 × 111 × 8 (H×V×D)
    Bezel Area(mm) 155.2 × 94.24 (H×V)
    Treatment Anti-glare , Hard coating (3H)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 750 : 1 (Typ.) (TM)
    Viewing Angle 80/80/80/80 (CR≥10) Left / Right/UP /Down
    Response 20/10 (Typ.)(Tr/Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 262K/16.2M , 60% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 175g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO Original Package;
    60 pcs/ carton;
    weight : 14.4Kgs;
    size : 434(L) x 377(W) x 264(H)mm
    G070VW01 V0
    G070VW01 V0
    G070VW01 V0
    G070VW01 V0
    G070VW01 V0
    G070VW01 V0

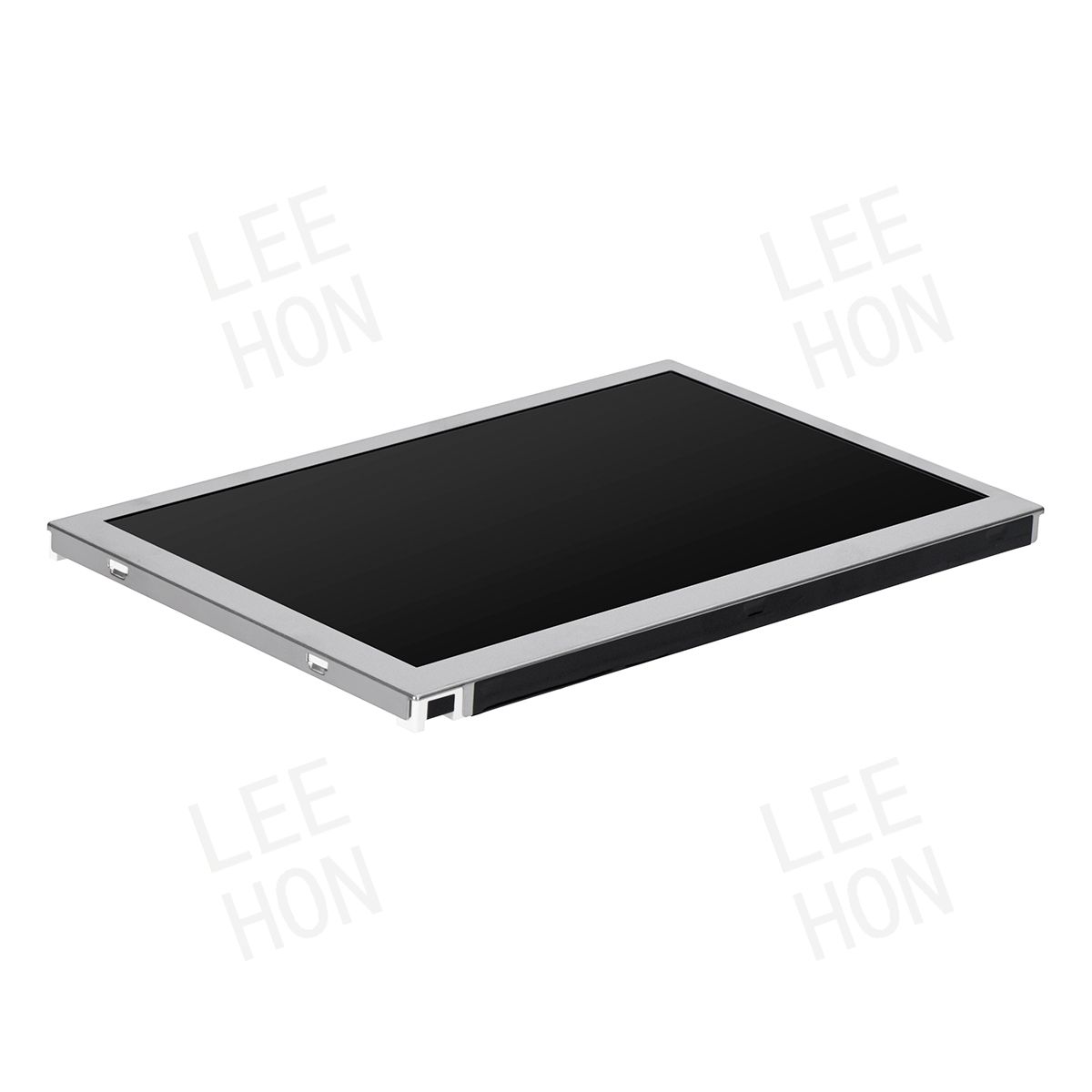

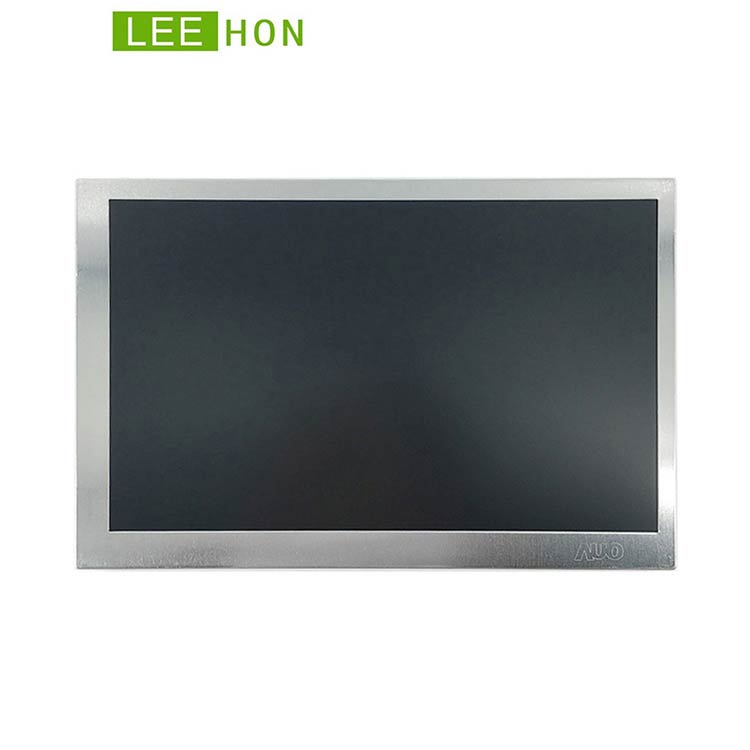

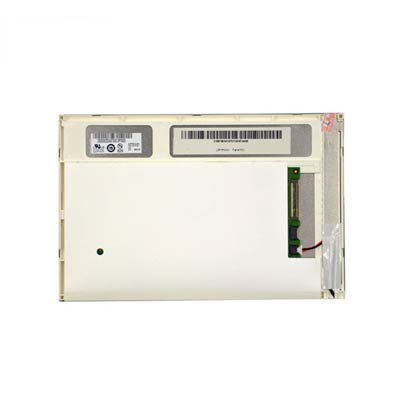

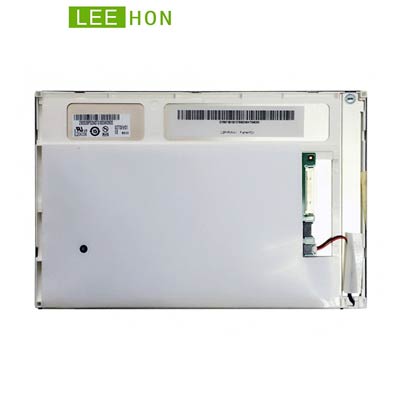

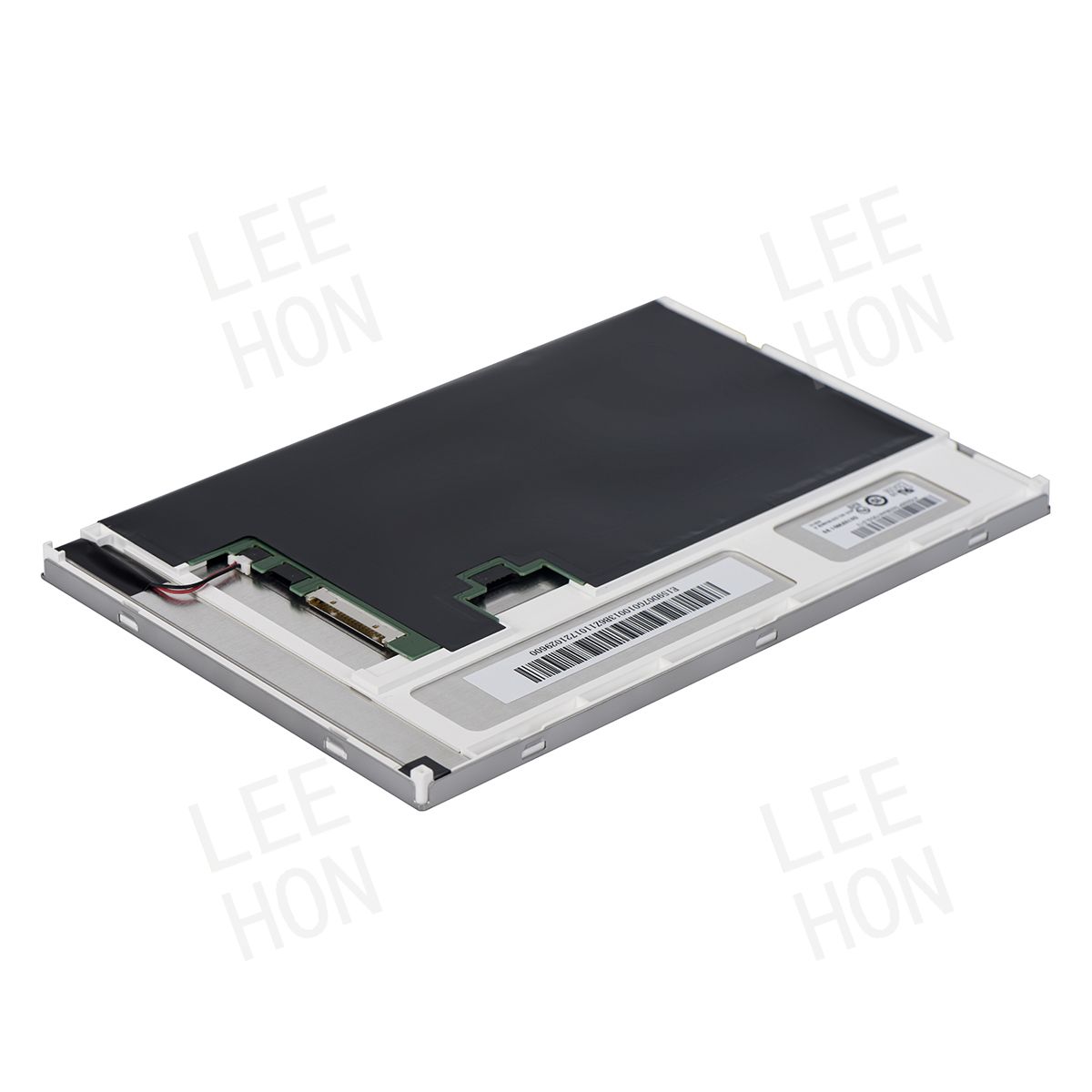

  • AUO 7 inch tft lcd panel G070VW01 V0 with 800(RGB)x480 WVGA resolution, brightness 400 cd/m². This lcd display's working temperature is -30 ~ +85 (°C)  and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.

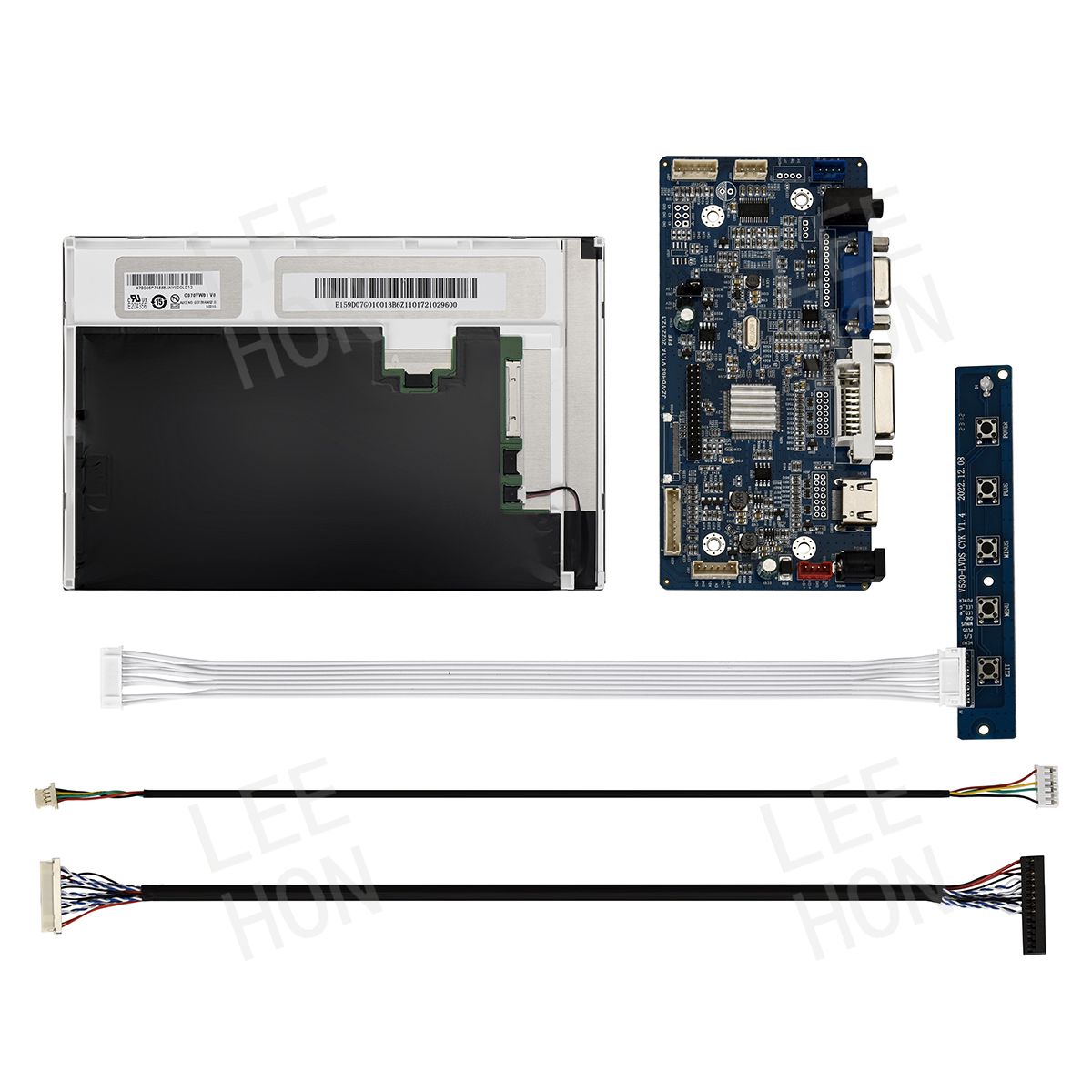

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 7 Inch 800x480 WVGA LCD Panel AUO TFT LCD Screen Wide Temperature Range G070VW01 V0 with 400 nits, 20 pins LVDS and Controller board.

    AUO

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
