| Manufacturer | AUO |
| Model Name | G057VN01 V220 |
| Screen Size | 5.7 inch |
| Pixel Number | 640(RGB)×480 , VGA |
| Active Area(mm) | 115.2 x 86.4 (H×V) |
| Outline(mm） | 144.0 x 104.6 x 12.3 (H×V×D) |
| Pixel Pitch(mm) | 0.18 x 0.18 (H×V) |
| Treatment |
Anti-Glare, Hardness 3H
|
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 15/10 (Typ.)(Tr/Td) ms |
| Display Mode | AHVA , Normally black , Transmissive |
| Color Depth | 262K/ , 50% NTSC |
| Backlight | WLED , 70K hours , with LED Driver |
| Net Weight | 165g |
| Touchscreen | without |
| Signal Type/interface Type | CMOS (1 ch, 6-bit) , 33 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings | Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package | AUO Original package; 60 pcs/ctn; weight : 12.95Kgs; size : 528(L) x 348(W) x 265(H) mm |

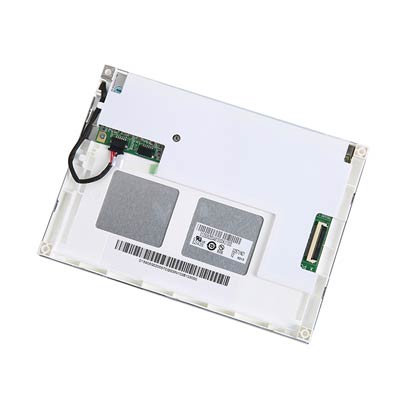

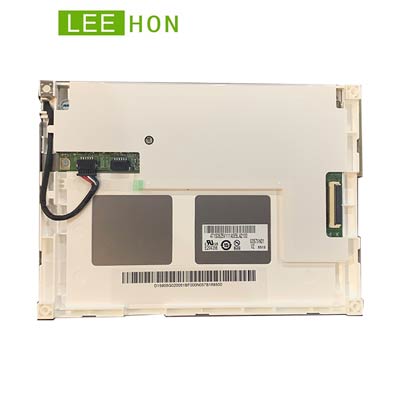

AUO 5.7 inch tft lcd ips panel G057VN01 V220 with 640(RGB)x480 VGA resolution, brightness 700 cd/m². This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is - 30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use and Outdoor Highlight.
Matched Resistive touch and Capacitive touch available. Aso we have matched HDMI driver board.
High Brightness 5.7 Inch 640x480 VGA LCD Screen Original AUO TFT LCD Panel For Outdoor Highlight G057VN01 V220 with 700nits and wide Operating temperature range.
