| Manufacturer | AUO |
| Model Name | G057VN01 V2 |
| Screen Size | 5.7 inch |
| Pixel Number | 640(RGB)×480 , VGA |

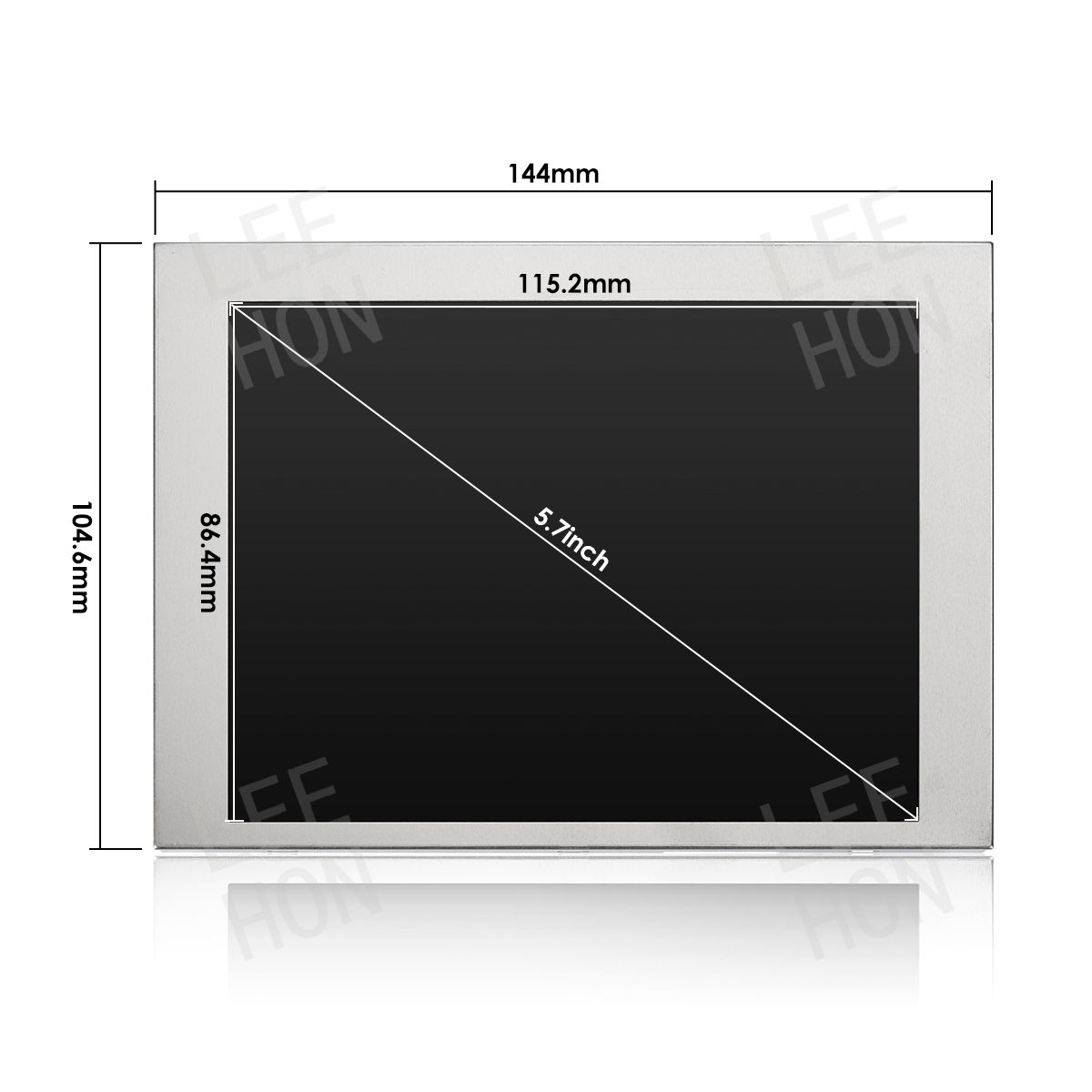

| Active Area(mm) | 115.2 × 86.4 (H×V) |
| Outline(mm） | 144 × 104.6 × 12.8 (H×V×D) |
| Bezel Area(mm) | 118.2 × 89.4 (H×V) |
| Treatment | Anti-glare , Hard coating (3H) |
| Luminance | 700 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/70/70 (CR≥10) Left / Right/UP /Down |
| Response | 15/10 (Typ.)(Tr/Td) ms |
| Work Mode | TN , Normally white , Transmissive |
| Color Depth | 262K , 50% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 150/165g (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | CMOS (1 ch, 6-bit) , 33 pins |
| Voltage Supply | +3.3 V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
AUO Original package; 60 pcs/ carton; weight : 12.95Kgs; size : 520(L) x 340(W) x 250(H) mm |
