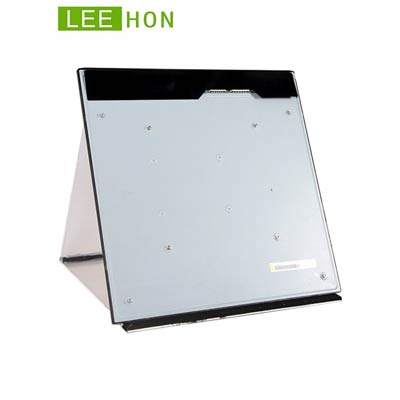

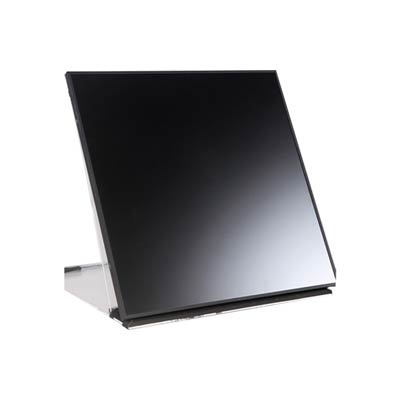

DV332X2M-NV0

Your location： Home > Products > AUO > 33.2" >

Module No：DV332X2M-NV0
Brand：AUO
Size：33.2 inch
Resolution：1920(RGB)×1920
Brightness：420 cd/m²
Viewing angle：89/89/89/89 (Typ.)
Interface：LVDS (4 ch, 8-bit) 92 pins
CR：1000:1
Operating Temp.: 0 ~ 50(°C)

Parameters
Description

Manufacturer	AUO
Model Name	DV332X2M-NV0
Screen Size	33.2 inch
Pixel Number	1920(RGB)×1920
Active Area(mm)	596.16 (H) x 596.16 (V)
Outline(mm）	612.96(H) x 612.96 (V) x 7.7(D) typ
Pixel pitch(mm)	0.1035(H) x 0.3105(V)
Treatment	AG 25 %, 3H
Luminance	4200 cd/m² (Typ.)
Contrast Ratio	1000 : 1 (Typ.) (TM)
Viewing Angle	89/89/89/89 (Typ.)
Response time	8 (Typ.)(Tr/Td) ms
Display Mode	ADS, Normally black, Transmissive
Color Depth	16.7M , 72% NTSC
Backlight	WLED, 30K hours,without Driver
Net Weight	4.89Kgs
Touchscreen	without
Interface	LVDS (4 ch, 8-bit) 92 pins
Voltage Supply	+5.0V
Max. Ratings	Storage Temp.: -20 ~ 60 °C Operating Temp.: 0 ~50 °C
Package	AUO original packaging 8 pcs/box

AUO 33.2 inch tft lcd panel DV332X2M-NV0 with 1920*1920 resolution , brightness 420 cd/m².This lcd display is working temperature is 0~ 50 ° C and its storage temperature is - 20~ 60(° C).Based on its white LED backlight.This model is recommended for industrial use.
Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
BOE IPS 33 inch square TFT LCD Display DV332X2M-NV0 with 1920x1920 and LVDS cable for lcd panel.

Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range

Customization solutions
