G240HW01 V1

Your location: Home > Products > AUO > 24.0" >
  • Module No:G240HW01 V1
  • Brand:AUO
  • Size:24 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:300 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:5000:1 (Typ.)
  • Operating Temp.: -20 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G240HW01 V1
    Screen Size 24 inch
    Pixel Number 1920(RGB)×1080 , FHD
    Active Area(mm)
    531.36 (H) x 298.89 (V)
    Pixel Pitch(mm)
    276.75 (per one triad) × 276.75

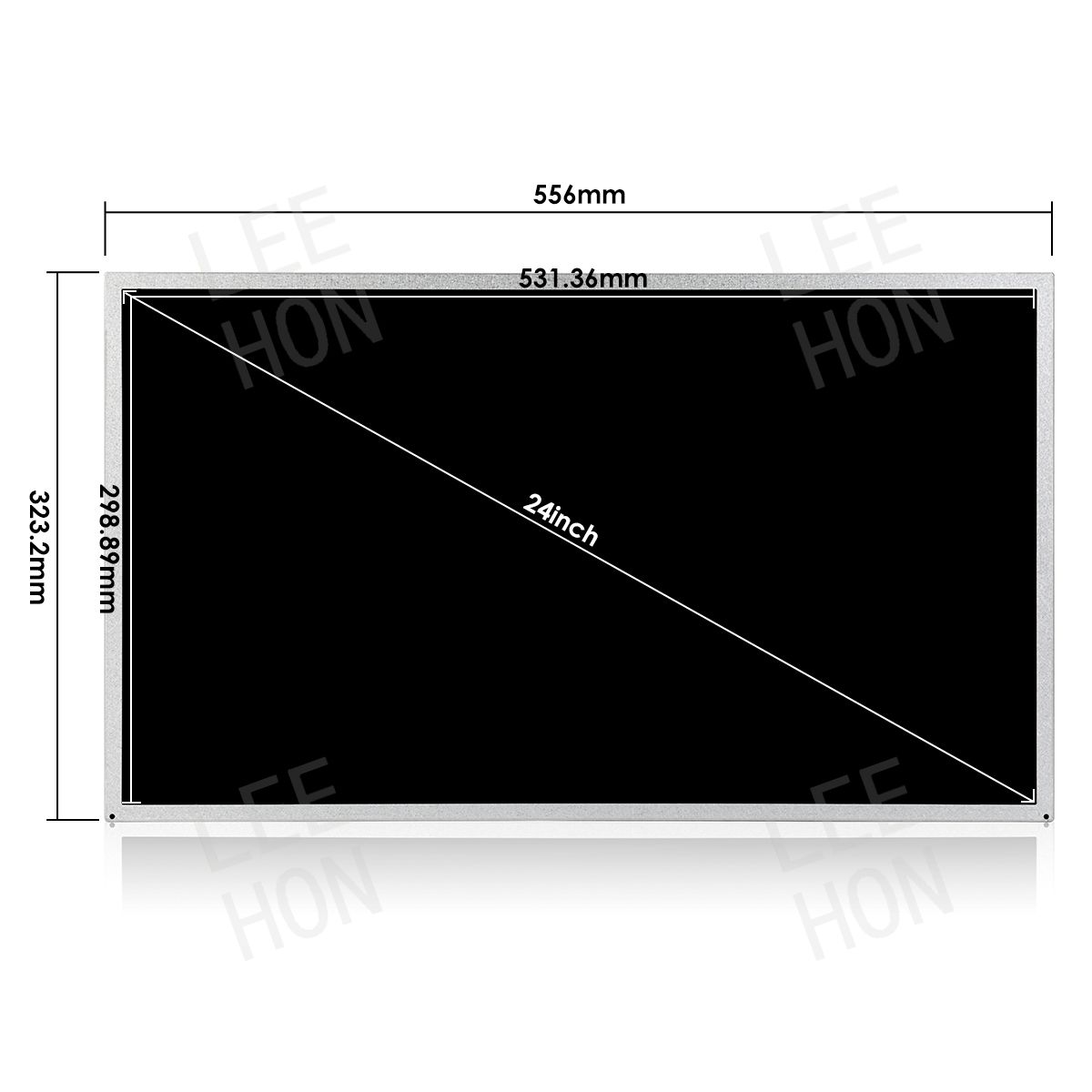

    Physical Size(mm)
    556.0 (W) x 323.2 (H) x 17.0 (D)
    Treatment
    Anti-Glare , 3H
    Luminance 300 cd/m² (Typ.)
    Contrast Ratio 5000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)
    Response 16/9 (Typ.)(Tr/Td) ms
    Work Mode AWVA3 , Normally Black , Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 2.32Kgs
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +5.0 V
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -20 ~ +70 (°C)
    Package AUO original package;
    8 pcs/carton
    G240HW01 V1
    G240HW01 V1
    G240HW01 V1
    G240HW01 V1
    G240HW01 V1
    G240HW01 V1


  • AUO 24 inch tft lcd ips panel G240HW01 V1 with 1920(RGB)x1080 Full HD resolution, brightness 300 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 24 Inch 1920*1080 Full HD LCD Panel Original AUO TFT LCD IPS Display G240HW01 V1 with High Contrast 5000:1, 300nits and 30 pins LVDS.

    auo

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
