G215HVN01.3

Your location： Home > Products > AUO > 21.5" >
  • Module No：G215HVN01.3
  • Brand：AUO
  • Size：21.5 inch
  • Resolution：1920(RGB)×1080 , FHD
  • Brightness：1000 cd/m²
  • Viewing angle：89/89/89/89 (Typ.)
  • Interface：LVDS (2 ch, 8-bit) , 30 pins
  • CR：5000:1
  • Operating Temp.: -20 ~ +80 (℃）
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G215HVN01.3
    Screen Size 21.5 INCH
    Pixel Number 1920(RGB)×1080 , FHD

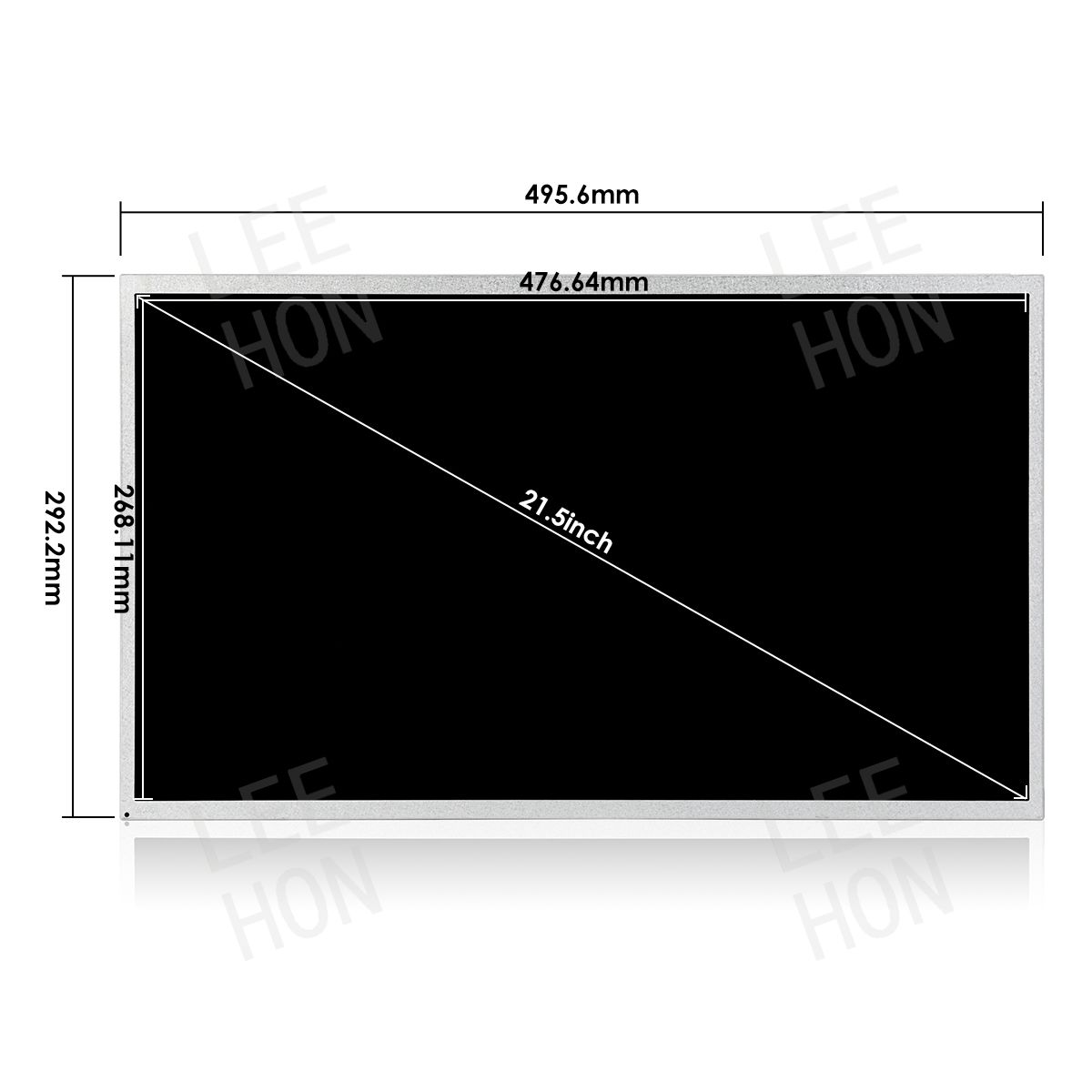

    Active Area(mm)
    476.64 (H) x 268.11 (V)
    Pixel Pitch(um)
    248.25 (per one triad) × 248.25
    Treatment
    Anti-Glare , 3H
    Luminance 1000 cd/m² (Typ.)
    Contrast Ratio 5000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)
    Response 20/5 (Typ.)(Tr/Td) ms
    Work Mode
    VA , Normally Black
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 1.79Kgs
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +5.0 V
    Max. Ratings Storage Temp.: -20 ~ +80 (°C)
    Operating Temp.: -20 ~ +80 (°C)
    Package AUO original package;
    7 pcs/ctn;
    weight : 30.9Kgs;
    size : 6020(L) x 372(W) x 367(H)mm
    G215HVN01.3
    G215HVN01.3
    G215HVN01.3
    G215HVN01.3
    G215HVN01.3
    G215HVN01.3


  • AUO 21.5 inch tft lcd ips panel G215HVN01.3 with 1920(RGB)x1080 Full HD resolution, brightness 1000 cd/m²(High Brightness). This lcd display's working temperature is -20 ~ +80 (°C) and it's storage temperature is -20 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor highlight use.

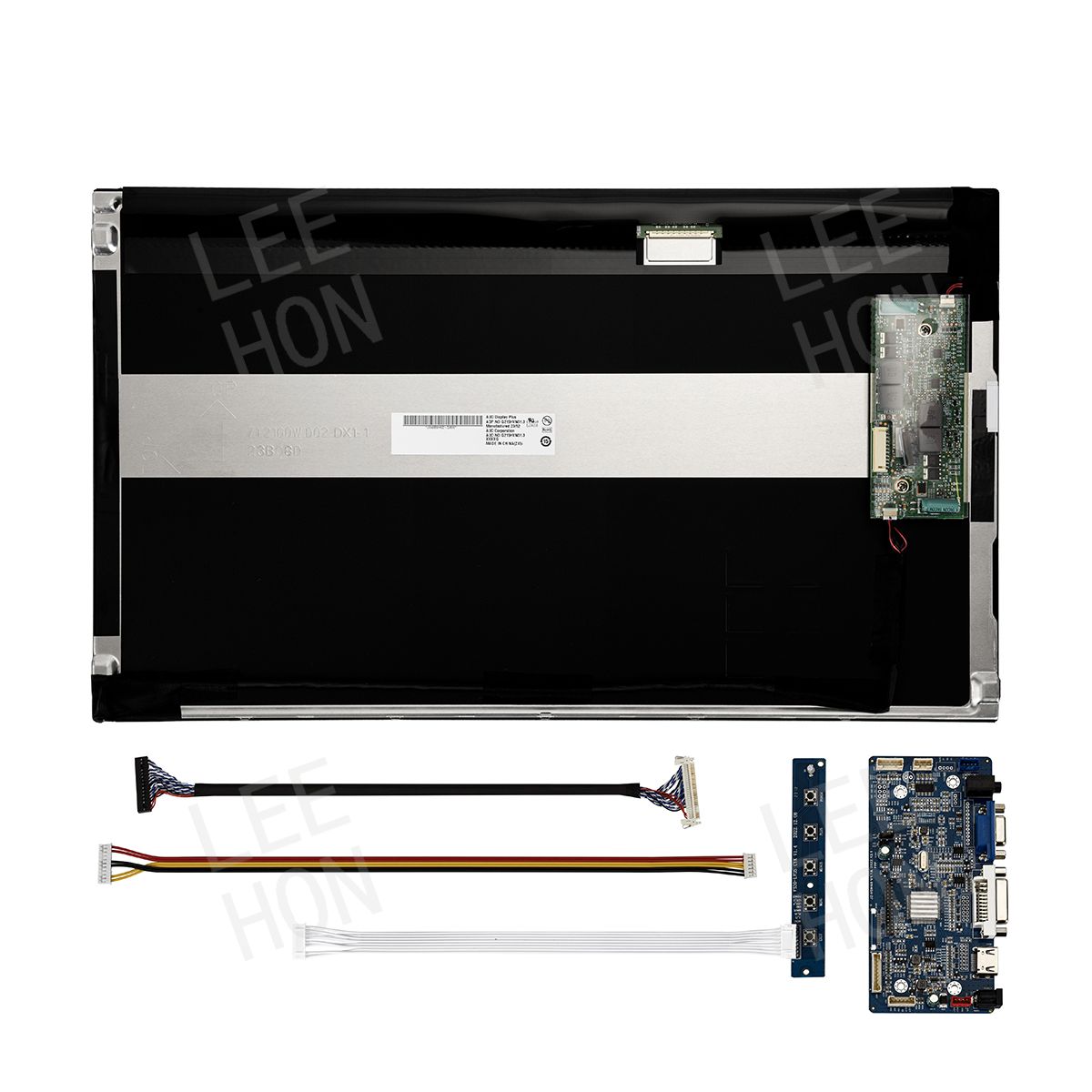

    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 21.5 Inch 1920*1080 Full HD LCD Panel Original AUO 21.5" TFT IPS Sunlight Readable Display For Outdoor G215HVN01.3 with 1000nits High Brightness,Full Viewing and 30 pins LVDS.
    auo

    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
