G190EG01 V1

Your location: Home > Products > AUO > 19.0" >
  • Module No:G190EG01 V1
  • Brand:AUO
  • Size:19 inch
  • Resolution:1280(RGB)×1024 , SXGA
  • Brightness:350 cd/m²
  • Viewing angle:85/85/80/80 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000 : 1
  • Operating Temp.: 0 ~ +50 (℃)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G190EG01 V1
    Screen Size 19 inch
    Pixel Number 1280(RGB)×1024 , SXGA
    Active Area(mm) 376.32 × 301.056 (H×V)
    Outline(mm) 396 × 324 × 18.3 (H×V×D)
    Bezel Area(mm) 380.32 × 305.06 (H×V)
    Treatment Hard coating (3H)
    Luminance 350 cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 85/85/80/80 (CR≥10)
    Left/Right/UP/Down
    Response 3.6/1.4 (Typ.)(Tr+Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 16.7M , 72% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 1.67Kgs (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (2 ch, 8-bit) , 30 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: 0 ~ +50 (°C0
    Operating Temp.: -20 ~ +60 (°C)
    Package AUO Original package;
    6 pcs/ carton;
    weight : 16.17Kgs
    AUO

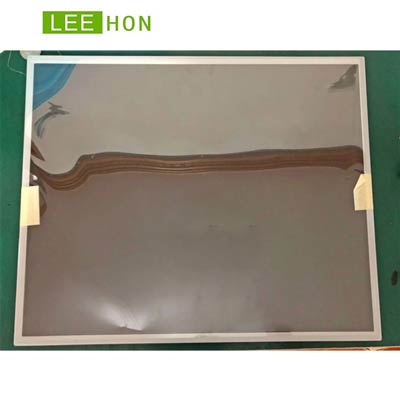

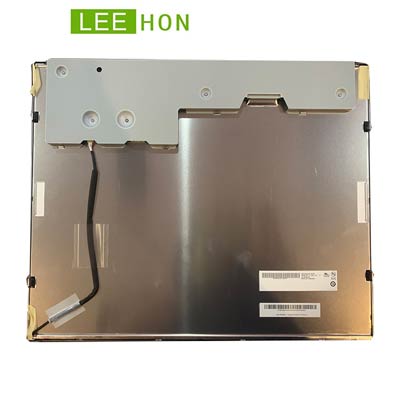

  • AUO 19 inch tft lcd panel G190EG01 V1 with 1280(RGB)x1024 SXGA resolution, brightness 350 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial and Gaming use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 19 Inch 1280*1024 SXGA LCD Panel Original AUO TFT LCD Display For Gaming G190EG01 V1 with 350nits, 30 pins LVDS.
