| Manufacturer | AUO |
| Model Name | G185HAN01.1 |
| Screen Size | 18.5 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) | 409.8 × 230.4 (H×V) |

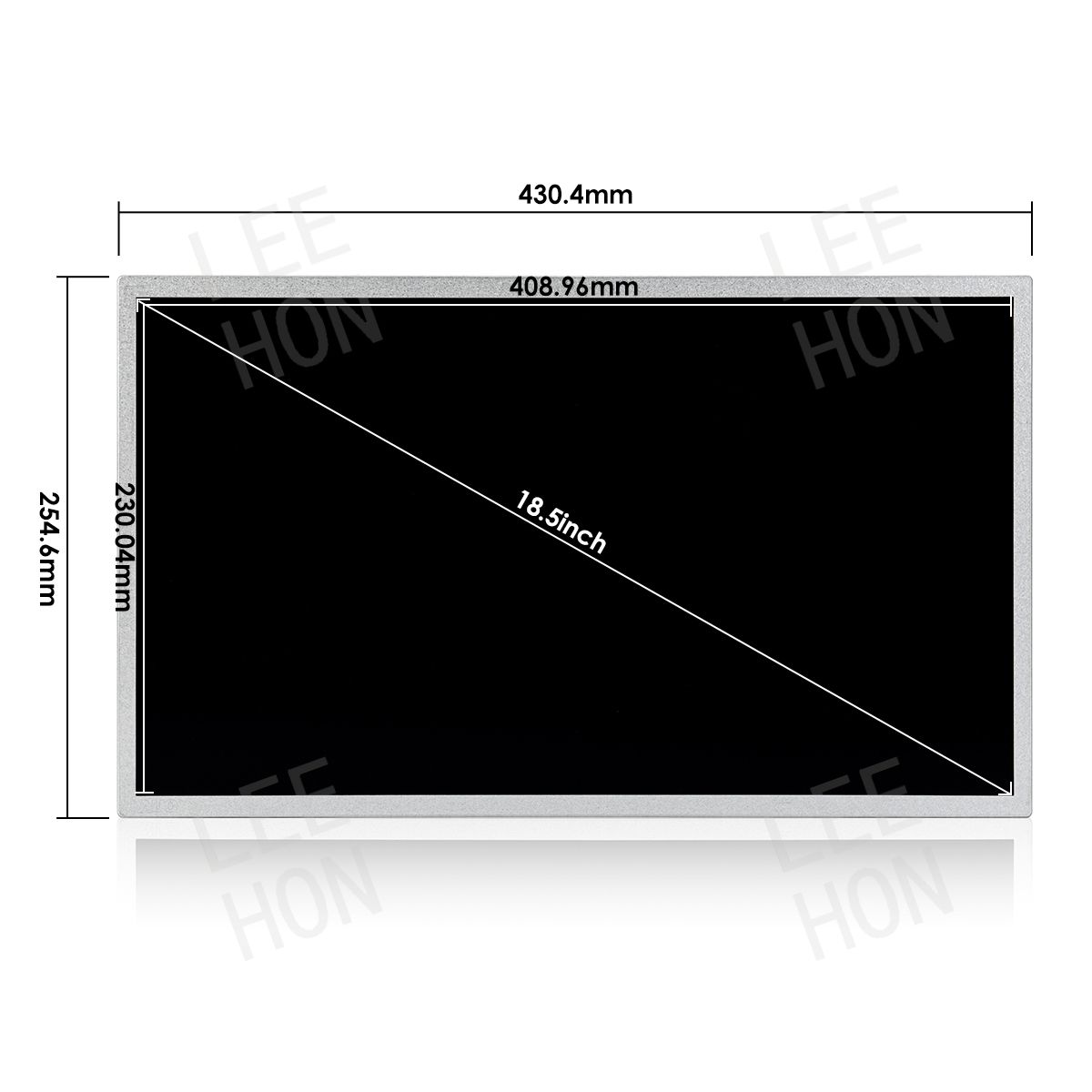

| Outline(mm） | 430.4 × 254.6 × 12.5 (H×V×D) |
| Bezel Area(mm) | 410.96 × 232.0 (H×V) |
| Treatment | Anti-glare , Hardness 3H |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (CR≥10) Left/Right/UP/Down |
| Response | 10/10 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.7M , 99% sRGB |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 1.20kg (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch 8bit) , 30 pins |
| Voltage Supply | +5.0V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -25 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
AUO Original package; 8 pcs/ carton; weight : 15.0Kgs; size : 520(L) x 280(W) x 352(H)mm |
