G156XW01 V4

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156XW01 V4
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1366(RGB)×768 WXGA
  • Brightness:500 cd/m²
  • Viewing angle:85/85/80/80 (Typ.)
  • Interface:eDP (1 Lane) , eDP1.2,30 pins
  • CR:500:1
  • Operating Temp.: 0 ~ 60(°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G156XW01 V4
    Screen Size 15.6 inch
    Pixel Number 1366(RGB)×768 WXGA
    Active Area(mm) 344.232 (H) x 193.536 (V)
    Outline(mm) 363.8(W) X 215.9(H) X 16.85(D)
    Bezel Area(mm) 347.54(H)×196.83(V)
    Treatment Anti-glare,3H
    Luminance 500 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 85/85/80/80 (Typ.)
    Response 6/2 (Typ.)(Tr/Td) ms
    Work Mode TN, Normally white, Transmissive
    Color Depth 16.2M , 62% NTSC
    Backlight WLED,50K hours,with LED Driver
    Net Weight 900 g
    Touchscreen without
    Signal Type/interface Type eDP (1 Lane) , eDP1.2,30 pins
    Voltage Supply 5.0V
    Max. Ratings Storage Temp.: -20 ~ 60 °C
    Operating Temp.: 0 ~60 °C
    Package Package :AUO original package;
    10 pcs/carton
    AUO

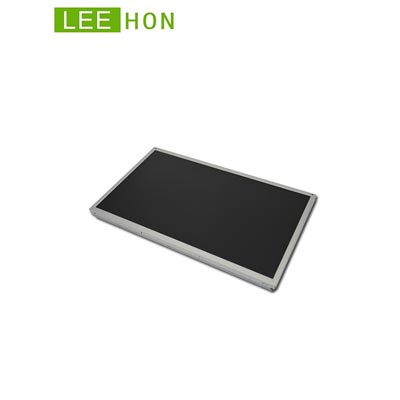

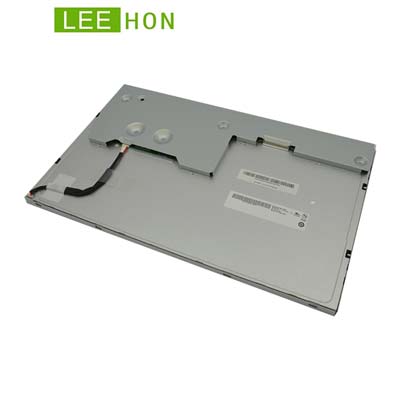

  • AUO 15.6 inch tft lcd panel G156XW01 V4 with 1366*768(wxga) resolution , brightness 500 cd/m².This lcd display is working temperature is - 0~ 60 ° C and its storage temperature is - 20~ 60 (° C).Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and capacitive touch available.also we have matched HDMI driver board and touch screen.
    Industrial AUO display 15.6 inch 1366*768 G156XW01 V4 tft lcd module with eDP interface.


    • Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
      stock for sale
      long-time supply
      no MOQ
      in fulll range
