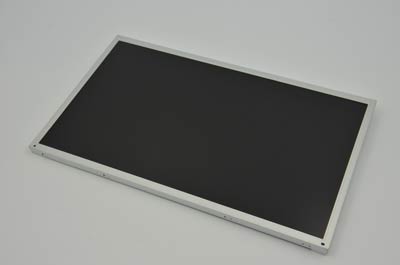

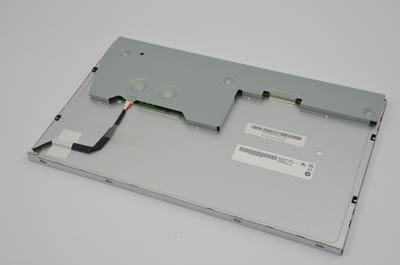

G156XW01 V1

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156XW01 V1
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1366(RGB)×768 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:85/85/80/80 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 30 pins
  • CR:500:1
  • Operating Temp.: 0 ~ +60 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G156XW01 V1
    Screen Size 15.6 inch
    Pixel Number 1366(RGB)×768 , WXGA
    Active Area(mm)
    344.232 (H) x 193.536 (V)
    Outline(mm)
    363.8(W) x 215.9(H) x 16.85 (D) Typ.
    Pixel Pitch(um)
    252 (per one triad) × 252
    Treatment
    Anti-Glare , 3H
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 500 : 1 (Typ.) (TM)
    Viewing Angle 85/85/80/80 (Typ.)
    Response time 6/2(Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 16.2M , 70% NTSC
    Backlight WLED , 50K hours , with LED Driver
    Net Weight 1.35Kgs
    Touchscreen without
    Interface LVDS (1 ch, 8-bit) , 30 pins
    Voltage Supply +5.0 V
    Max. Ratings Storage Temp.: -20 ~ +60 (°C)
    Operating Temp.: 0 ~ +60 (°C)
    Package AUO original packaging
    AUO
  • AUO 15.6 inch tft lcd panel G156XW01 V1 with 1366(RGB)x768 WXGA resolution, brightness 400 cd/m². This lcd display's working temperature is 0 ~ +60 (°C) and it;s storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial 15.6 inch 1366*768 WXGA LCD Screen Original AUO TFT LCD Panel G156XW01 V1 with 400 nits, 30pins LVDS and backlight time 50000 hours.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
