| Manufacturer | AUO |

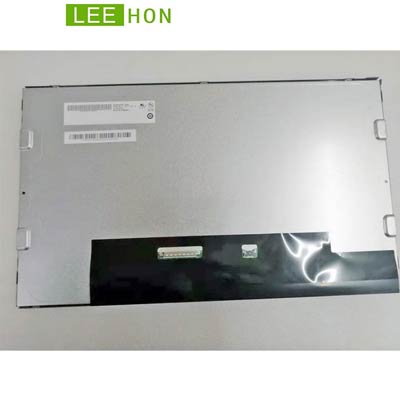

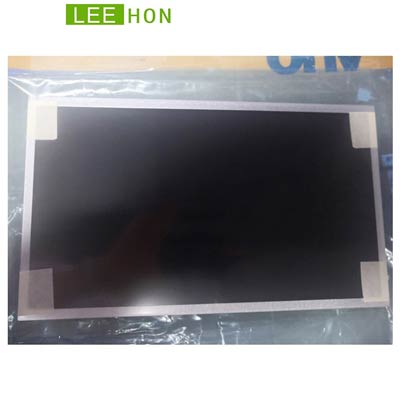

| Model Name | G156XTN01.0 |
| Screen Size | 15.6 Inch |
| Pixel Number | 1366(RGB)×768 , WXGA |
| Active Area(mm) | 344.232 ×193.536 (H×V) |
| Outline(mm） | 363.8 × 215.9 × 9.1 (H×V×D) |
| Pixel Pitch(mm) | 0.252 × 0.252 (H×V) |
| Treatment | Anti-Glare , 3H |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 80/80/60/70 (CR≥10) Left / Right/UP /Down |
| Response time | 10 (Typ.)(Tr/Td) ms |
| Display Mode | TN , Normally white , Transmissive |
| Color Depth | 16.7M , 62% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 860g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 8-bit) ,30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
AUO Original package; 16 pcs/ctn; weight : 15.3Kgs; size : 450(L) x 375(W) x 319(H)mm |
