G156HTN01.0

Your location: Home > Products > AUO > 15.6" >
  • Module No:G156HTN01.0
  • Brand:AUO
  • Size:15.6 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:300 cd/m²
  • Viewing angle:80/80/70/70 (Typ.)
  • Interface:eDP (2 Lanes) , 30 pins
  • CR:700:1
  • Operating Temp.: -10 ~ +60 (℃)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G156HTN01.0
    Screen Size 15.6 inch
    Pixel Number 1920(RGB)×1080 , Full HD
    Active Area(mm) 344.16 × 193.59 (H×V)
    Outline(mm) 359.5 × 216.95 × 3.55 (H×V×D)
    Pixel Pitch(mm) 0.17925 × 0.17925 (H×V)
    Treatment Anti-glare
    Luminance 300 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (TM)
    Viewing Angle 80/80/70/70 (CR≥10) Left / Right/UP /Down
    Response time 6/3 (Typ.)(Tr/Td) ms
    Display Mode TN , Normally white , Transmissive
    Color Depth 262K , 60% NTSC
    Backlight WLED , 15K hours , with LED Driver
    Net Weight 400g
    Touchscreen without
    Signal Type/interface Type eDP (2 Lanes) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -20 ~ +6(°C)
    Operating Temp.: -10 ~ +6(°C)
    Package AUO Original package;
    40 pcs/ctn;
    weight : 19.0Kgs
    size : 480(L) x 341(W) x 302(H) mm
    AUO

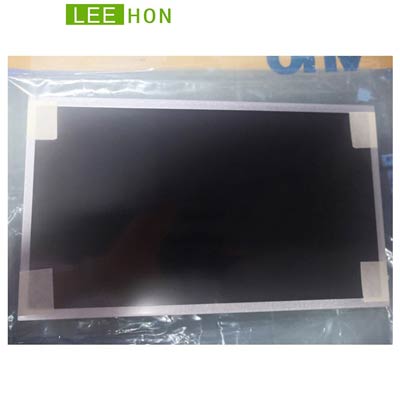

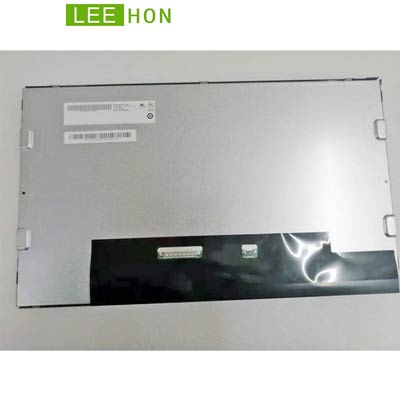

  • AUO 15.6 inch tft lcd panel G156HTN01.0 with 1920(RGB)x1080 Full HD resolution, brightness 300 cd/m². This lcd display's working temperature is -10 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and eDP cables.
    15.6 Inch 1920*1080 Full HD LCD Panel Original AUO TFT Display G156HTN01.0 Support 300 nits and eDP interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
