| Manufacturer | AUO |
| Model Name | G156HAN05.0 |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |

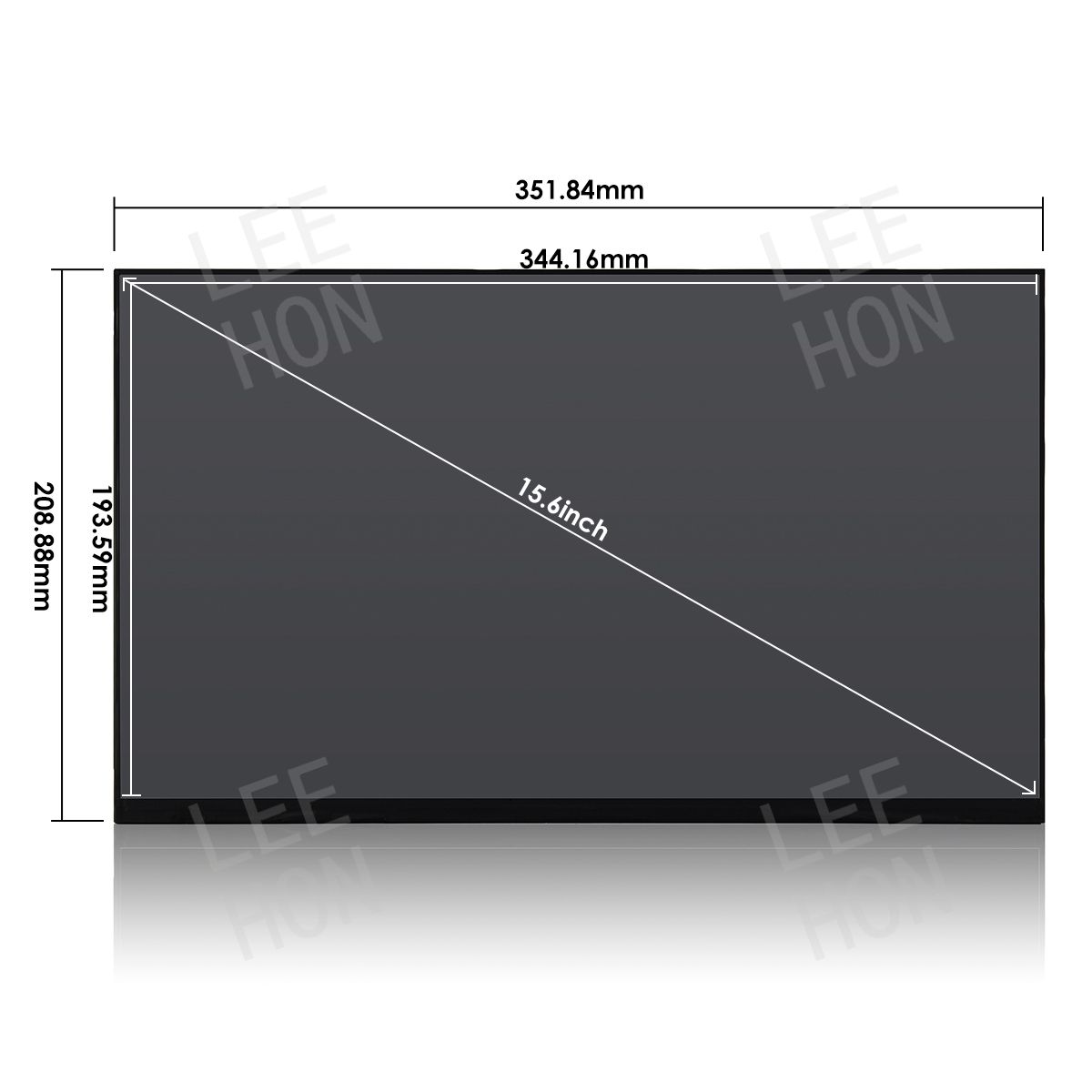

| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm） | 351.84(L) x 208.88(W) x 6.0(T) |
| Pixel pitch(mm) | 0.17925 x 0.17925 |
| Treatment | HC , 3H |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (CR≥10) Left/Right/UP/Down |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA, Normally black , Transmissive |
| Color Depth | 16.2M , 100% sRGB |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 580g |
| Touchscreen | without |
| Signal Type/interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins |
| Voltage Supply | +3.3 V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -20 ~ +70 (°C) Operating Temp.: -10 ~ +60 (°C) |
| Package |
AUO Original package; 18 pcs/ctn; weight : 10.0Kgs; size : 485(H) x 375(W) x 340(H)mm |
