| Manufacturer | AUO |
| Model Name | G156HAN04.0 |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |

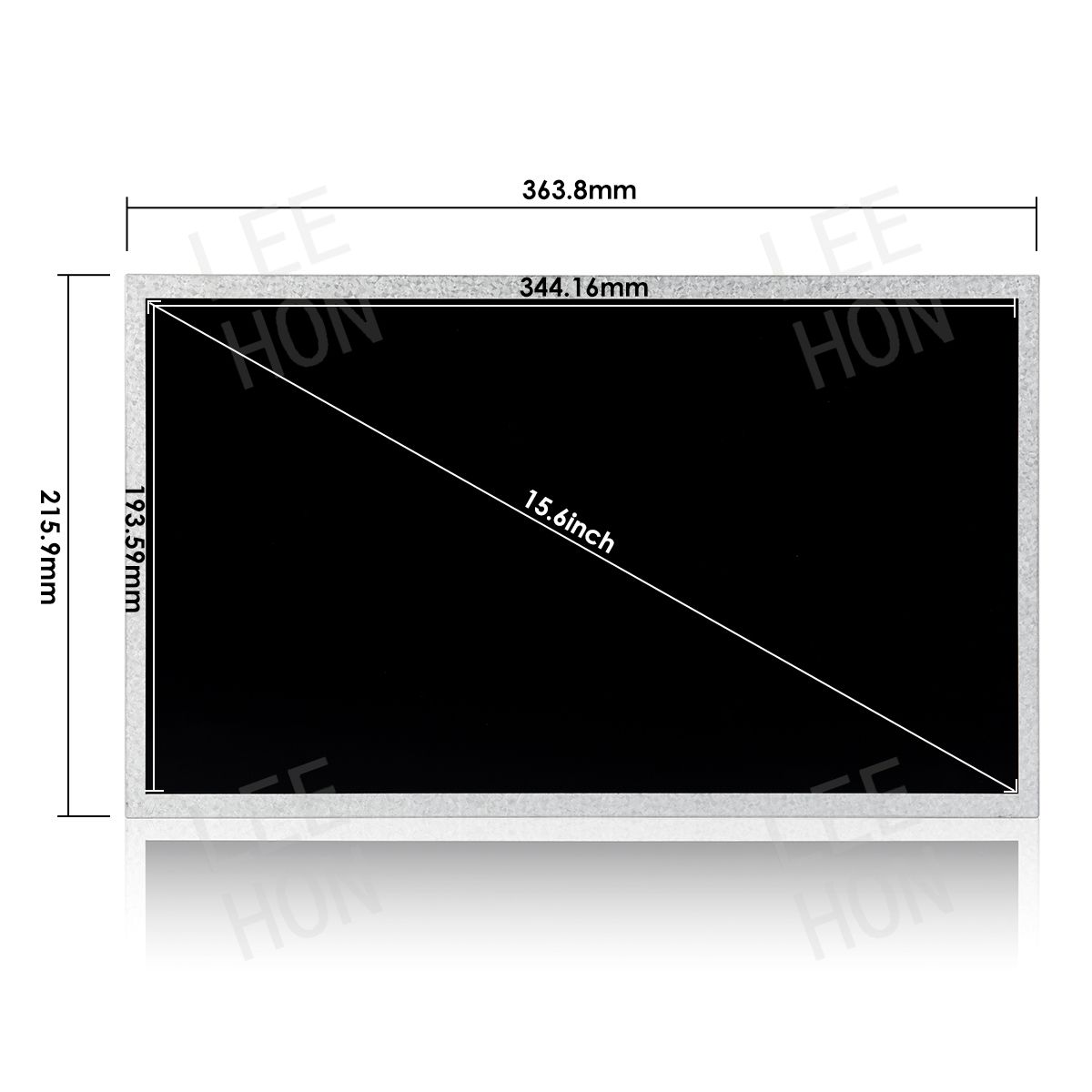

| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm） | 350.66 × 216.15 × 3.2 (H×V) |
| Pixel pitch(mm) | 0.17925 x 0.17925 mm |
| Treatment |
Anti-glare, 3H
|
| Luminance | 1000 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89(CR≥10) Left/Right/UP/Down |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.7M , 72% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 850g (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (2 ch, 8-bit) , 30 pins |
| Voltage Supply | +3.3 V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -30 ~ +85 (°C) Operating Temp.: -30 ~ +85 (°C) |
| Package |
AUO Original package; 16 pcs/ carton; weight : 13.2Kgs; size : 450(L) x 375(W) x 319(H) mm |
