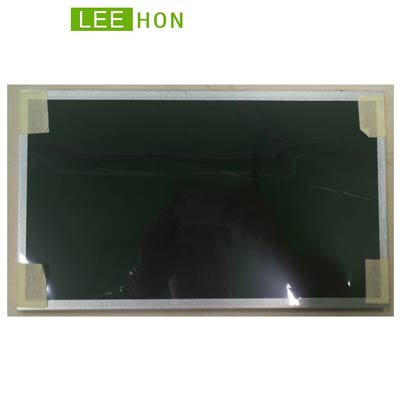

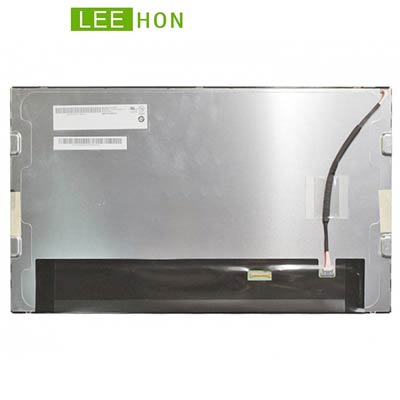

| Manufacturer | AUO |
| Model Name | G156HAN02.0 |
| Screen Size | 15.6 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |
| Active Area(mm) | 344.16 × 193.59 (H×V) |
| Outline(mm） | 363.8 × 215.9 × 8.8 (H×V) |
| Bezel Area(mm) | 347.06 × 196.49 (H×V) |
| Treatment | Anti-Reflection ≤1.5% , hardness 2H |
| Luminance | 500 cd/m² (Typ.) |
| Contrast Ratio | 1000 : 1 (Typ.) (TM) |
| Viewing Angle |
89/89/89/89 (CR≥10) Left/Right/UP/Down |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.2M , 99% sRGB |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 660g (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | eDP (2 Lanes) , 30 pins |
| Voltage Supply | +3.3 V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
AUO Original Package; 16pcs/ carton; weight : 13.2Kgs; size : 450(L) x 375(W) x 319(H)mm |
