G150XTN06.A

Your location： Home
  • Products
  • AUO
  • 15.0"
    • Module No：G150XTN06.A
    • Brand：AUO
    • Size：15 inch
    • Resolution：1024(RGB)×768 , XGA
    • Brightness：1800 cd/m²
    • Viewing angle：80/80/70/80 (Typ.)
    • Interface：LVDS (1 ch, 6/8-bit) , 20 pins
    • CR：800:1
    • Operating Temp.: -30 ~ +70 (°C)
    • Parameters
    • Description
    • Manufacturer  AUO
      Model Name G150XTN06.A
      Screen Size 15 inch
      Pixel Number 1024(RGB)×768 , XGA

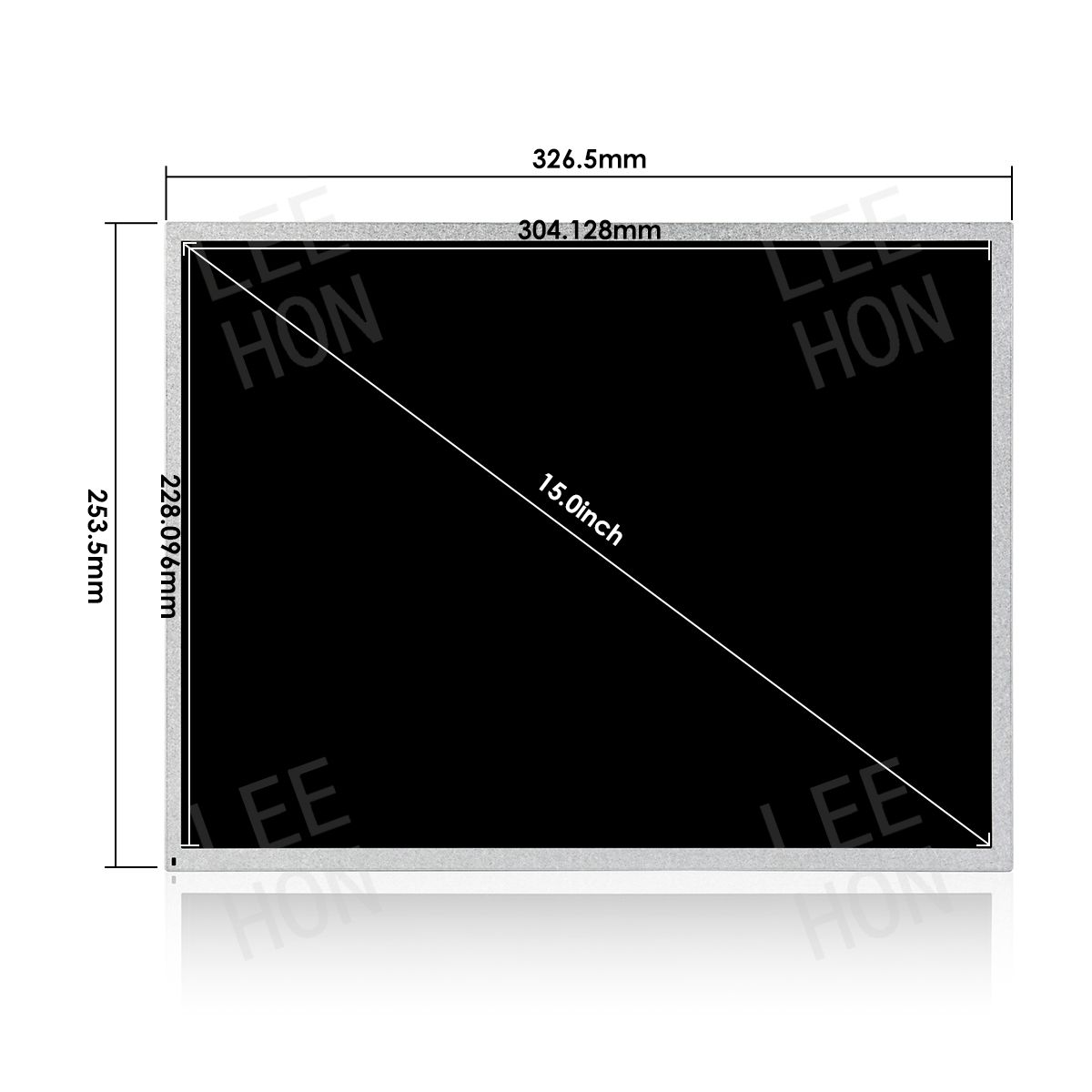

      Active Area(mm) 304.128(H) x 228.096(V)
      Bezel Area(mm) 304.128(H) × 228.096(V)
      Treatment Anti-glare
      Luminance 1800 cd/m² (Typ.)
      Contrast Ratio 800 : 1 (Typ.) (TM)
      Viewing Angle 80/80/70/80 (Typ.)
      Response 5.7/2.3 ms
      Work Mode TN , Normally white , Transmissive
      Color Depth 262K/16.2M , 60% NTSC
      Backlight WLED , 50K hours , with LED Driver
      Net Weight 1.00Kgs
      Touchscreen without
      Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 20 pins
      Voltage Supply +3.3 V
      Max. Ratings Storage Temp.: -30 ~ +70 (°C)
      Operating Temp.: -30 ~ +70 (°C0
      Package AUO Original package;
      14 pcs/Carton;
      weight: 16.5Kg /Carton;
      size: 430(L) x 370(W) x 350(H)mm
      /uploads/productimage/AUO/G150XTN06.A
      G150XTN06.A
      G150XTN06.A
      G150XTN06.A
      G150XTN06.A
      G150XTN06.A


    • AUO 15 inch tft lcd panel G150XTN06.A with 1024(RGB)x768 XGA resolution, brightness 1800 cd/m². This lcd display is working temperature is -30 ~ +70 (°C) and it's storage temperature is -30 ~ +70 (°C). Based on it's white LED backlight. This model is recommended for industrial and outdoor highlight use.

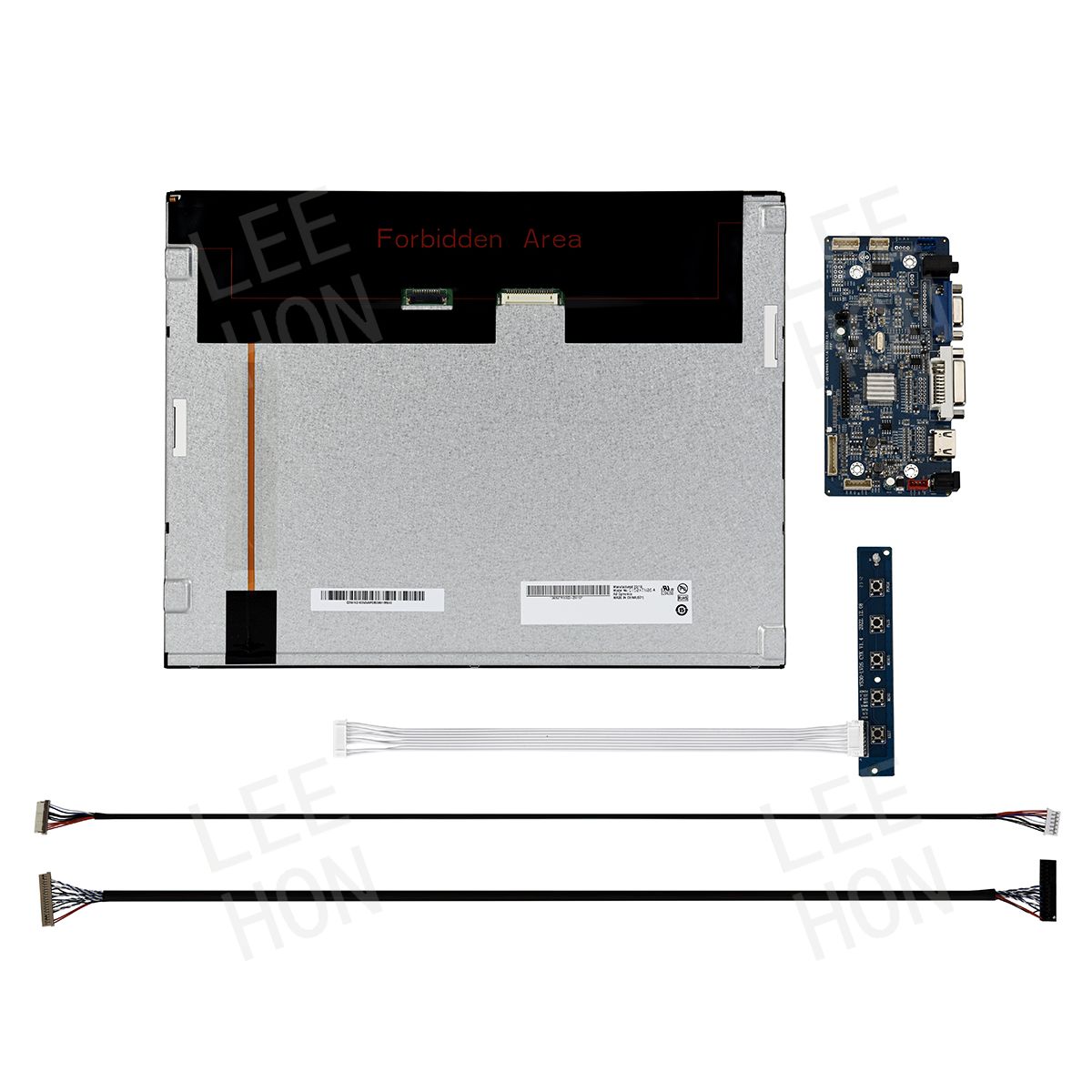

      Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
      Industrial 15 Inch 1024*768 XGA LCD Panel Original AUO 15" TFT LCD Display For Outdoor Highlight G150XTN06.A with 1800nits Sunlight Readable and 20 pins LVDS.
      auo

      Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
      mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
      PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
      very well in North&South America, Western Europe and Southeast Asia.
      We can supply total set of display solution:
      TFT LCD screen + touch screen + controller board + cables + open frame.
