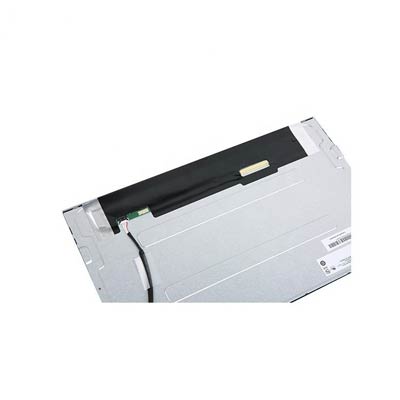

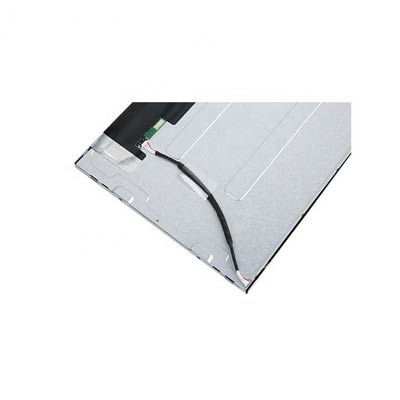

G154EVN01.0

Your location: Home > Products > AUO > 15.4" >
  • Module No:G154EVN01.0
  • Brand:AUO
  • Size:15.4 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (1 ch, 8-bit) , 30 pins
  • CR:3000:1
  • Operating Temp.: -10 ~ +70 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G154EVN01.0
    Screen Size 15.4 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm) 331.2 x 207 (H×V)
    Outline(mm) 352.0 x 230.0 x 8.55 (H×V×D)
    Pixel Pitch(mm) 0.259 x 0.259 (H×V)
    Treatment
    Anti-Glare, 3H
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 3000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89(CR≥10) Left / Right/UP /Down
    Response time 30 (Typ.)(Tr/Td) ms
    Display Mode AWVA3 , Normally black, Transmissive
    Color Depth 16.7M , 45% NTSC
    Backlight WLED, 50K hours, with LED Driver
    Net Weight 900g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -20 ~ +80 (°C)
    Operating Temp.: -10 ~ +70 (°C)
    Package AUO Original package;
    14 pcs/ctn;
    weight : 15.0Kgs;
    size : 428mm(L) x 365mm(W) x 328mm(H)
    AUO
  • AUO 15.4 inch tft lcd panel G156EVN01.0 with 1280(RGB)×800 WXGA resolution , brightness 400 cd/m². This lcd display is working temperature is -10 ~ +70 (°C) and its storage temperature is  -20 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.
    Industrial AUO 15.4 Inch 1280x800 WXGA TFT LCD Panel Display For Industry G156EVN01.0 With 400nit, LVDS 30pin And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
