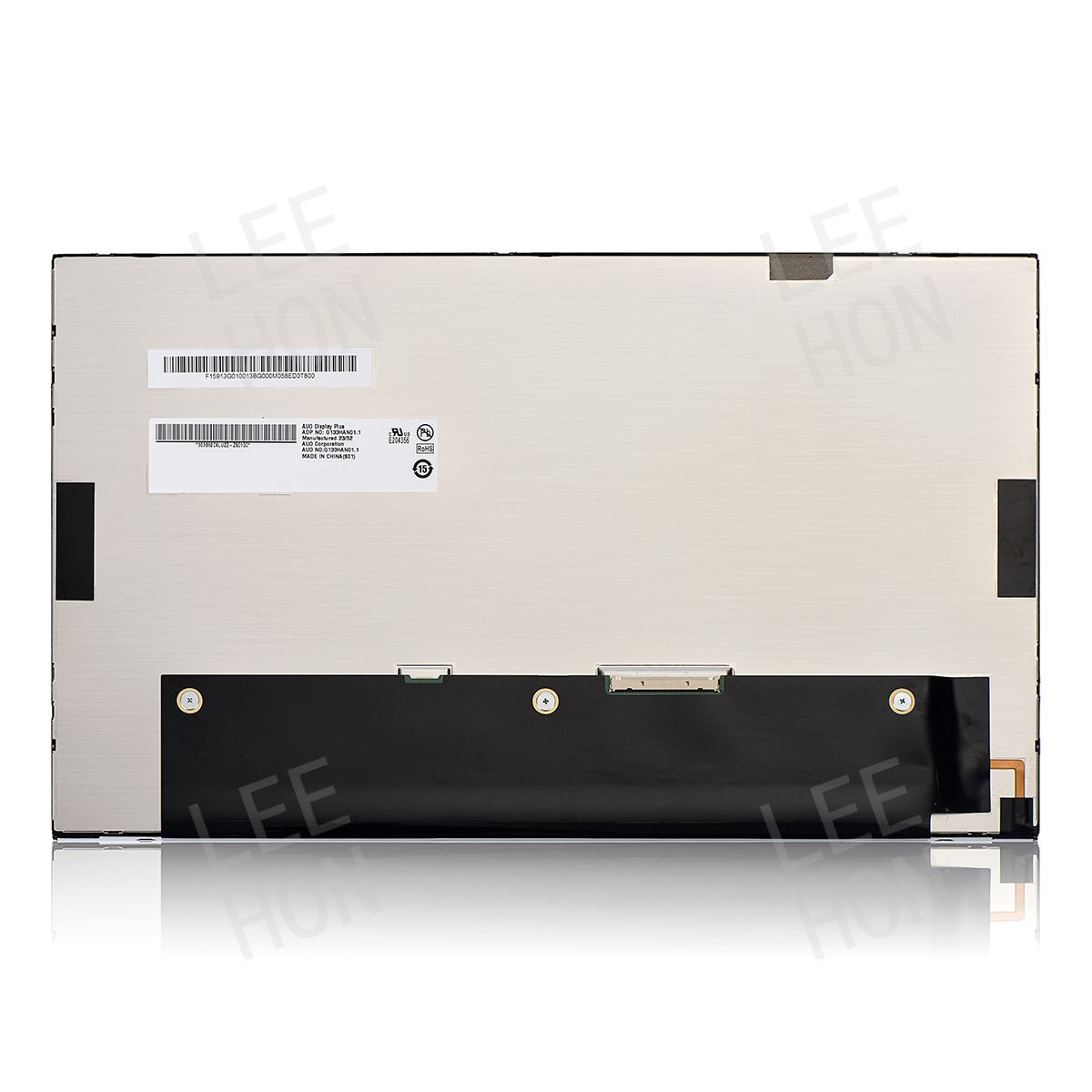

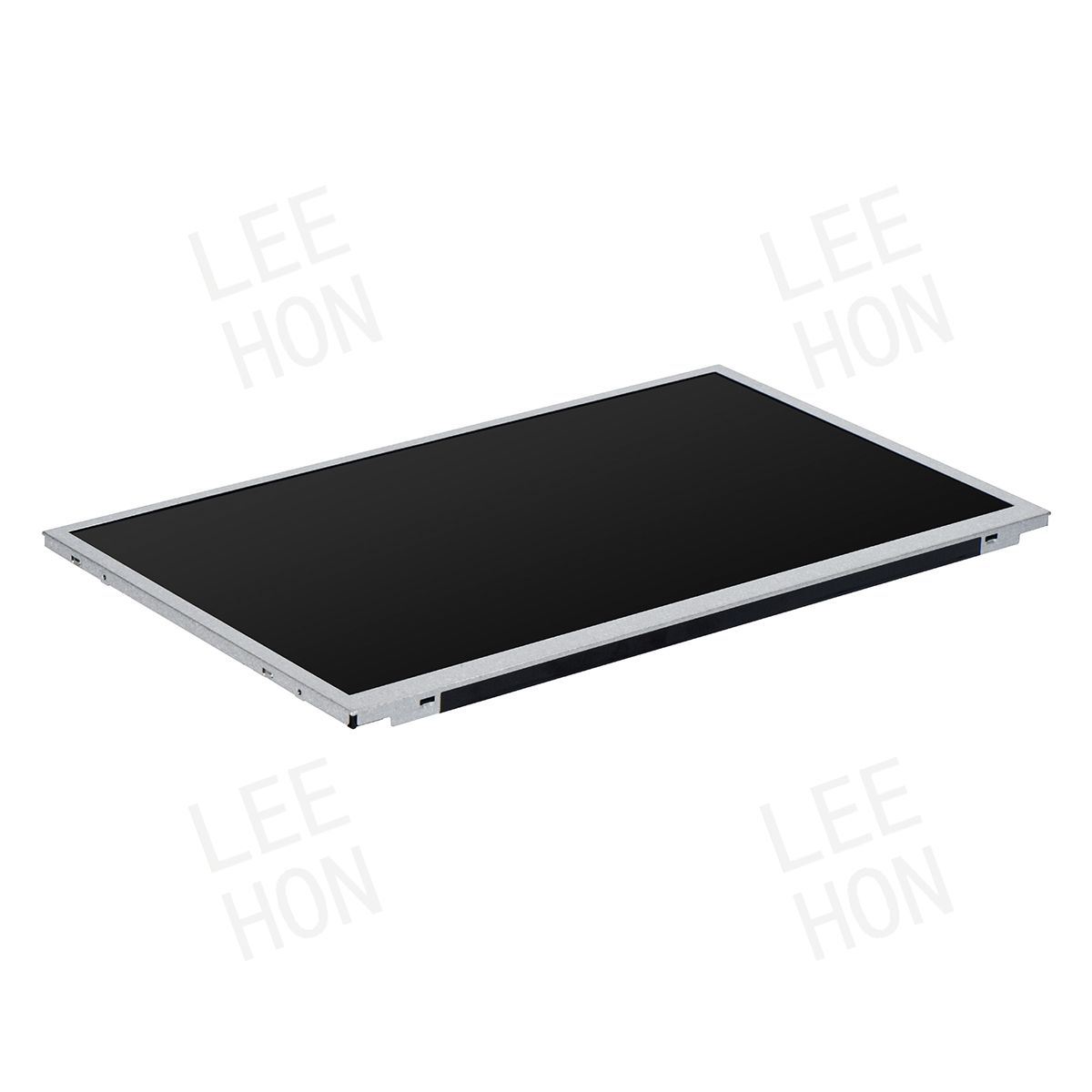

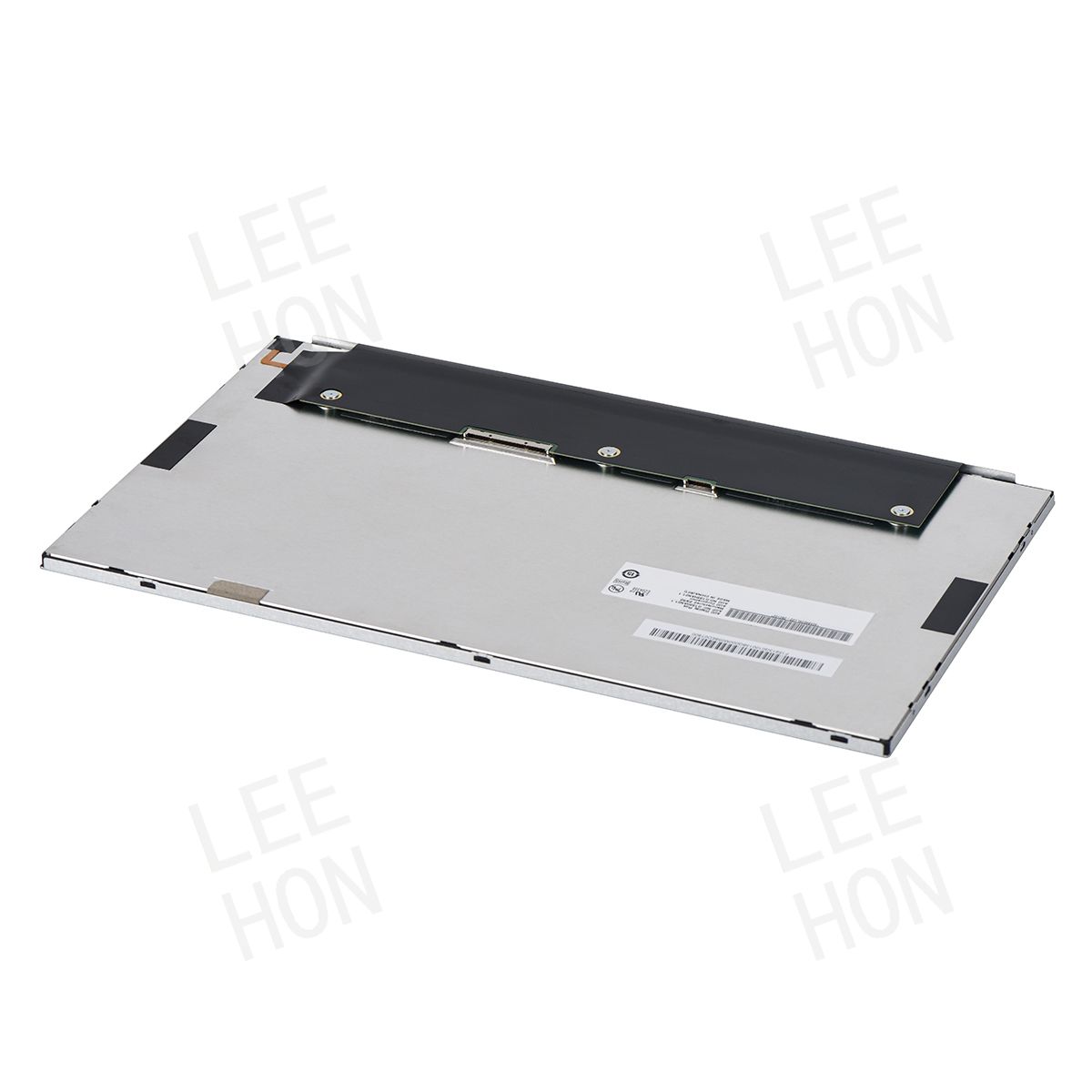

| Manufacturer | AUO |
| Model Name | G133HAN01.1 |
| Screen Size | 13.3 inch |
| Pixel Number | 1920(RGB)×1080 , FHD |

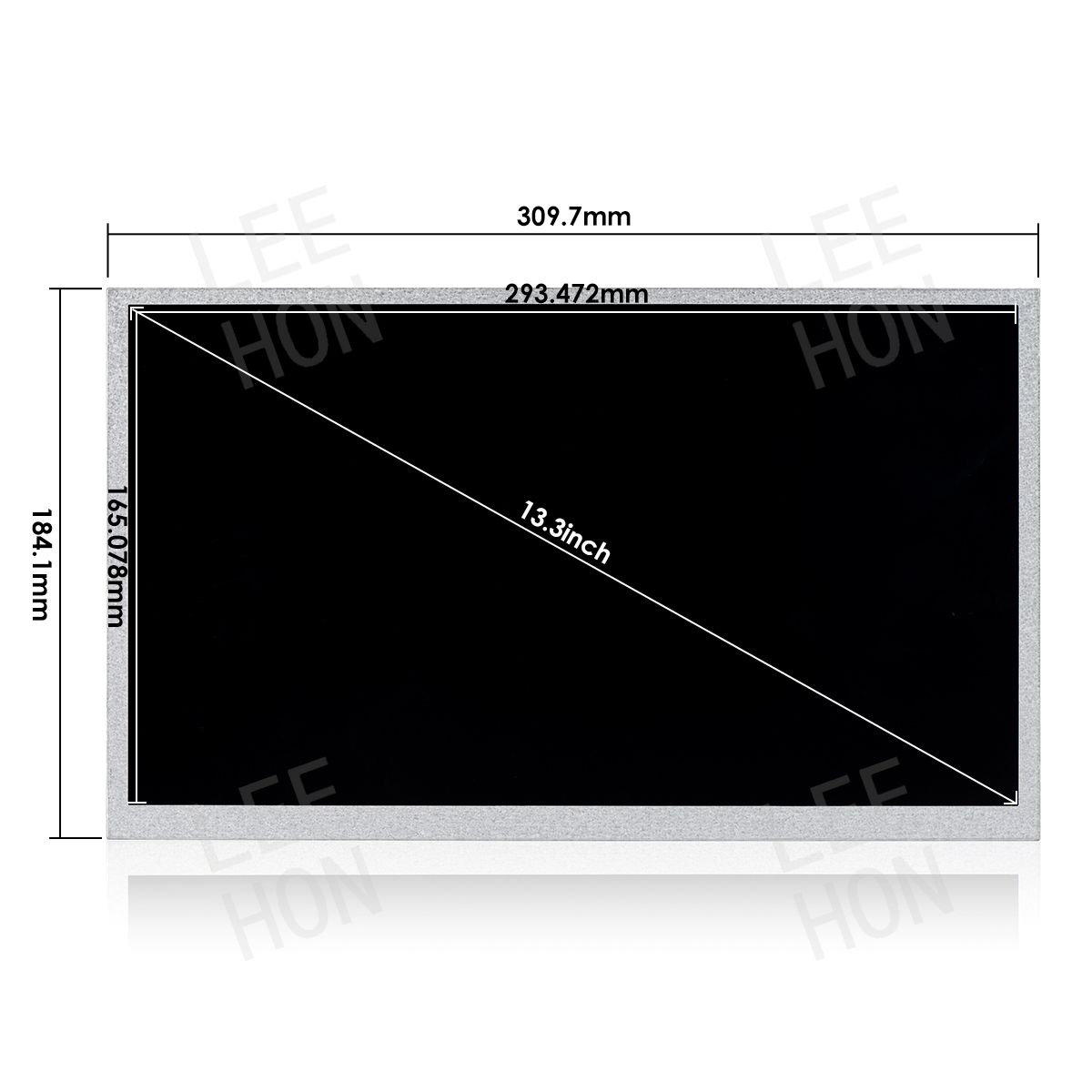

| Active Area(mm) | 293.472 × 165.078 (H×V) |
| Outline(mm） | 309.7(W) × 184.1(H) × 10.1 (H×V×D) |
| Bezel Area(mm) | 295.07(W) × 166.68 (H×V) |
| Treatment | Anti-glare |
| Luminance | 400 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle |
85/85/85/85 (CR≥10) Left/Right/UP/Down |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.7M , 90% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 500g (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8bit) , 20 pins |
| Voltage Supply | +3.3 V (Typ./Max.) |
| Max. Ratings |
Storage Temp.: -20 ~ +70 (°C) Operating Temp.: -20 ~ +70 (°C) |
| Package |
AUO Original package; 20 pcs/ctn; weight : 10.5Kgs; size : 480(L) x 275(W) x 450(H)mm |
