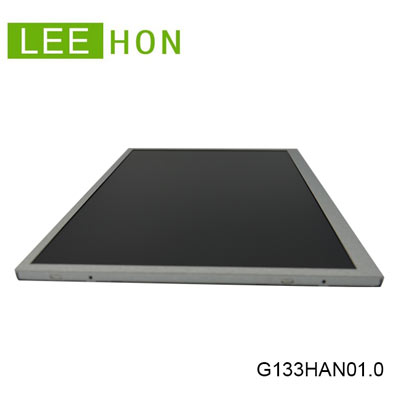

G133HAN01.0

Your location: Home > Products > AUO > 13.3" >
  • G133HAN01.0
  • Module No:G133HAN01.0
  • Brand:AUO
  • Size:13.3 inch
  • Resolution:1920*1080
  • Brightness:400 cd/m²
  • Viewing angle:85/85/85/85
  • Interface:LVDS (1 ch, 6/8bit) , 20 pins
  • CR:800 : 1
  • Operating Temp.: -20 ~ 70 °C
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G133HAN01.0
    Screen Size 13.3
    Pixel Number 1920(RGB)×1080 , FHD
    Active Area(mm) 293.472×165.078mm (H×V)
    Outline(mm) 309.7(W)×184.1(H)×10.1mm(H×V×D)
    Bezel Area(mm) 295.07(W)×166.68 mm (H×V)
    Treatment Hard coating (3H)
    Luminance 400 cd/m² (Typ.)
    Contrast Ratio 800 : 1 (Typ.) (TM)
    Viewing Angle 85/85/85/85(CR≥10)
    Left/Right/UP/Down
    Response 25 (Typ.)(Tr+Td) ms
    Work Mode AHVA, Normally black Transmissive
    Color Depth 16.7M , 90% NTSC
    Backlight 50K hours,with LED Driver
    Net Weight 500g (Typ.)
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8bit) , 20 pins
    Voltage Supply 3.3V (Typ./Max.)
    Max. Ratings Storage Temp.: -20 ~ 70 °C
    Operating Temp.: -20 ~70 °C
    Package 20 pcs/ carton

  • AUO 13.3 inch LCD screen G133HAN01.0, with 400 luminance and -20-70°C operating temp.
    G133HAN01.0 has standard 1920*1080 resolution,it also has full-view angle.
    This screen has 50000 hours lifetime of backlight , can support long term opertating.
    G133HAN01.0 has good viewing angle ,often be used in monitors.
