G121EAN01.1

Your location: Home > Products > AUO > 12.1" >
  • Module No:G121EAN01.1
  • Brand:AUO
  • Size:12.1 inch
  • Resolution:1280(RGB)×800 , WXGA
  • Brightness:400 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -30 ~ +85 (°C)
  • Parameters
  • Description
  • Manufacturer  AUO
    Model Name G121EAN01.1
    Screen Size 12.1 inch
    Pixel Number 1280(RGB)×800 , WXGA
    Active Area(mm)
    261.12(H) x 163.2(V)
    Bezel Area(mm) 261.12(H) × 163.2(V)
    Treatment Anti-glare , Hardness 3H
    Luminance 400cd/m² (Typ.)
    Contrast Ratio 1000 : 1 (Typ.) (TM)
    Viewing Angle 89/89/89/89 (Typ.)
    Response 25 (Typ.) ms
    Work Mode AHVA , Normally black , Transmissive
    Color Depth 262K/16.2M , 99% sRGB
    Backlight WLED,50K hours,with LED Driver
    Net Weight 480g
    Touchscreen without
    Signal Type/interface Type LVDS (1 ch, 6/8-bit) , 30 pins
    Voltage Supply +3.3 V
    Max. Ratings Storage Temp.: -30 ~ +85 (°C)
    Operating Temp.: -30 ~ +85 (°C)
    Package AUO Original packaging;
    20 pcs/ctn;
    weight : 15.5Kgs;
    size : 450(L) x 375(W) x 320(H)mm
    AUO

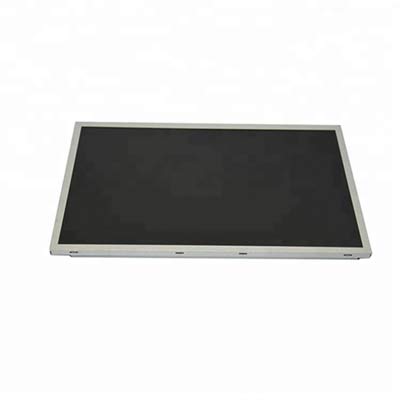

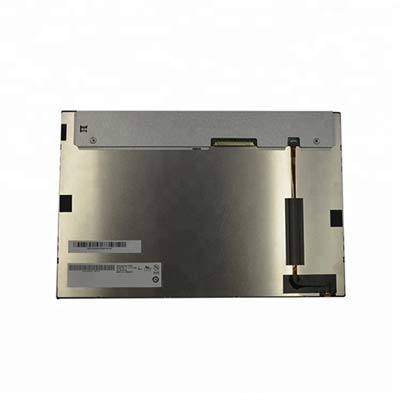

  • AUO 12.1 inch tft lcd ips panel 1G21EAN01.1 with 1280(RGB)x800 WXGA resolution, brightness 400 cd/m²(High Brightness). This lcd display's working temperature is -30 ~ +85 (°C) and it's storage temperature is -30 ~ +85 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables
    Industrial 12.1 Inch 1280*800 WXGA LCD Panel Original AUO 12" TFT LCD IPS Display G121EAN01.1 with 400nits and 30 pins LVDS.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
