| Manufacturer | AUO |
| Model Name | G104XVN01.0 |
| Screen Size | 10.4 inch |
| Pixel Number | 1024(RGB)×768 , XGA |

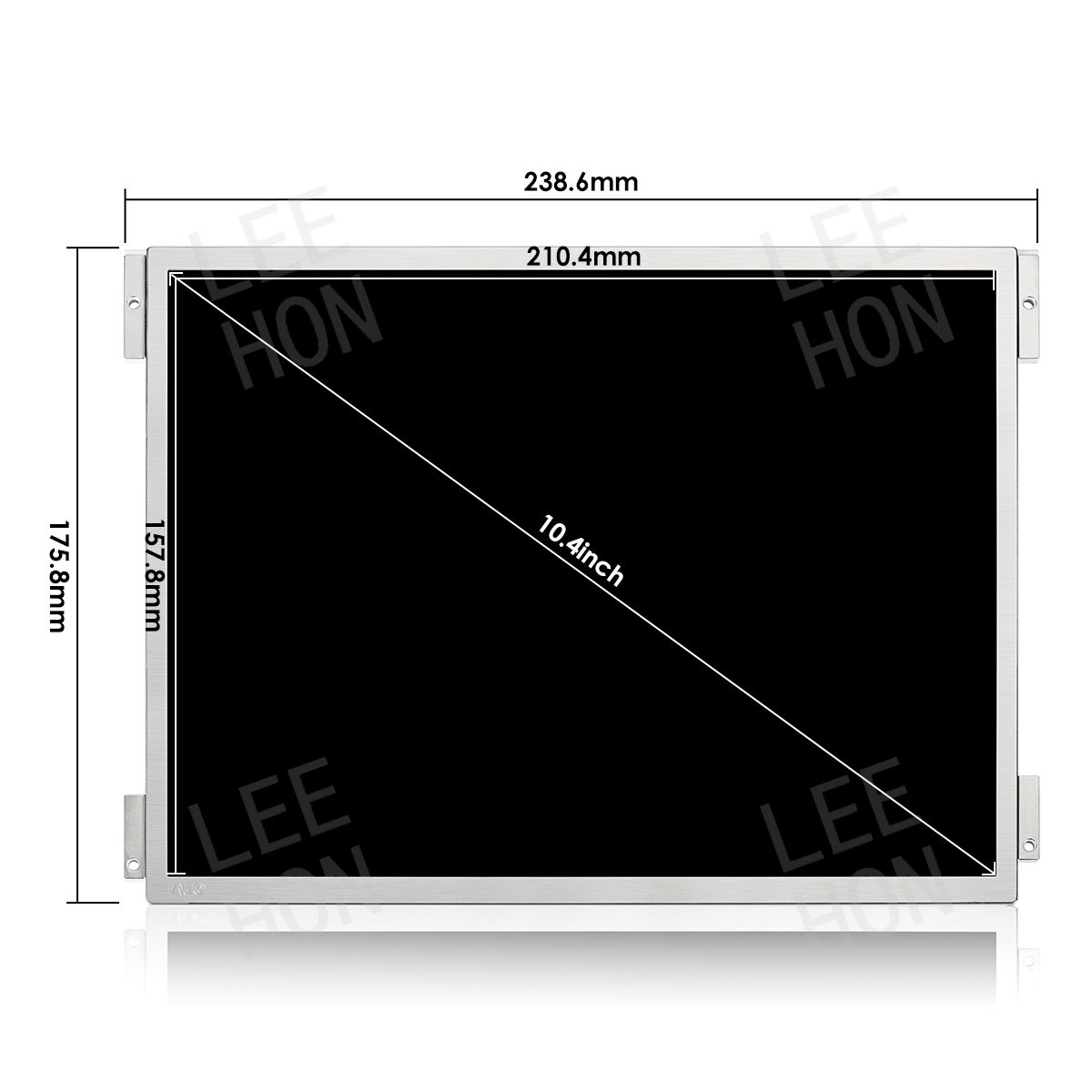

| Active Area(mm) | 210.4 x 157.8 (H×V) |
| Outline(mm） | 238.6 x 175.8 x 6.5 (H×V×D) |
| Pixel Pitch(mm) | 0.2055 x 0.2055 (H×V) |
| Treatment | Anti-glare , Hardness 3H |
| Luminance | 470 cd/m² (Typ.) |
| Contrast Ratio | 3000 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 20/10 (Typ.)(Tr/Td) ms |
| Display Mode | AMVA3 , Normally black , Transmissive |
| Color Depth | 262K/16.7M , 60% NTSC |
| Backlight | WLED , 50K hours , with LED Driver |
| Net Weight | 295g |
| Touchscreen | without |
| Signal Type/interface Type | LVDS (1 ch, 6/8-bit) , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -30 ~ +80 (°C) Operating Temp.: -30 ~ +80 (°C) |
| Package |
AUO Original package; 40 pcs/ctn; weight : 15.5Kgs; size : 458(L) x 412(W) x 368(H) mm |
