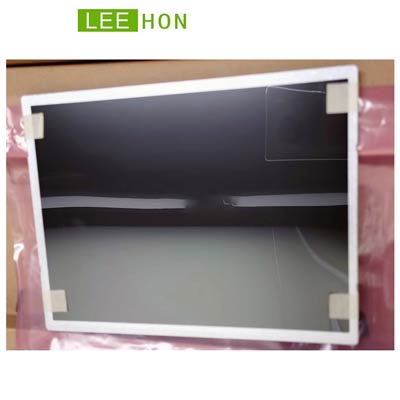

G104VTN01.0

Your location: Home > Products > AUO > 10.4" >
  • Module No:G104VTN01.0
  • Brand:AUO
  • Size:10.4 inch
  • Resolution:640(RGB)×480 , VGA
  • Brightness:370 cd/m²
  • Viewing angle:80/80/60/80 (Typ.)
  • Interface:Parallel RGB (1 ch, 6-bit) , 40 pins
  • CR:700:1
  • Operating Temp.: -30 ~ +80 (°C)
  • Parameters
  • Description
  • Manufacturer AUO
    Model Name G104VTN01.0
    Screen Size 10.4 inch
    Pixel Number 640(RGB)×480 , VGA
    Active Area(mm) 211.2 × 158.4 (H×V)
    Outline(mm) 227.3(H) x 177.5(V) x 9.3(D)
    Pixel pitch(mm) 0.33 x 0.33
    Treatment Anti-glalre , Hardness 3H
    Luminance 370 cd/m² (Typ.)
    Contrast Ratio 700 : 1 (Typ.) (TM)
    Viewing Angle 80/80/60/80 (CR≥10)
    Left/Right/UP/Down
    Response 20/10 (Typ.)(Tr+Td) ms
    Work Mode TN , Normally white , Transmissive
    Color Depth 262K
    Backlight WLED , 70K hours
    Net Weight 293g
    Touchscreen without
    Signal Type/interface Type Parallel RGB (1 ch, 6-bit) , 40 pins
    Voltage Supply +3.3 V (Typ./Max.)
    Max. Ratings Storage Temp.: -30 ~ +80 (°C)
    Operating Temp.: -30 ~ +80 (°C)
    Package AUO Original package;
    20 pcs/ carton
    AUO
  • AUO 10.1 inch tft lcd panel G104VTN01.0 with 640(RGB)x480 VGA resolution, brightness 370 cd/m². This lcd display's working temperature is -30 ~ +80 (°C) and it's storage temperature is -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
    Industrial 10.4 Inch 640*480 VGA LCD Panel Original AUO 10.4" TFT IPS Display G104VTN01.0 with 370nits, Wide temperature range -30C and RGB interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
