| Manufacturer | AUO |
| Model Name | G101UAN02.0 |
| Screen Size | 10.1 inch |
| Pixel Number | 1920(RGB)×1200 , WUXGA |
| Active Area(mm) |
216.81(H) x 135.5(V)
|
| Outline(mm） |
229.9 x 150.5 x 4.95 Max (PCBA side)
|
|
Pixel Pitch(mm)
|
0.11292 x 0.11292
|
| Treatment |
HCLR
|
| Luminance | 800 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left/Right/UP/Down |
| Response | 25 (Typ.)(Tr+Td) ms |
| Work Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.7M , 50% NTSC |
| Backlight | WLED , 20K hours , with LED Driver |
| Net Weight | 170g (Typ.) |
| Touchscreen | without |
| Signal Type/interface Type | MIPI (4 data lanes) , 34 pins |
| Voltage Supply | 3.3V (Typ./Max.) |
| Max. Ratings | Storage Temp.: -20 ~ +60 (°C) Operating Temp.: -10 ~ +60 (°C) |
| Package | BOE original package |

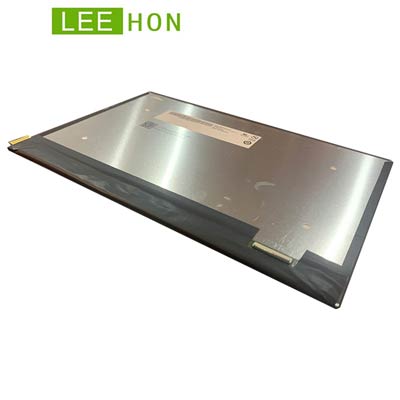

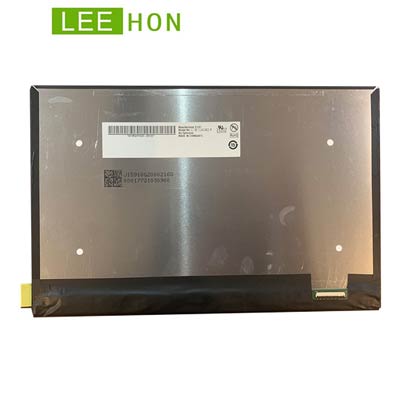

AUO 10.1 inch tft lcd ips panel G101UAN02.0 with 1920(RGB)x1200 WUXGA resolution, brightness 800 cd/m²(High Brightness). This lcd display's working temperature is -10 ~ +60 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Industrial use and Outdoor Highlight.
Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board.
Sunlight Readable 10.1 Inch 1920x1200 WUXGA LCD Panel Original AUO 10" TFT LCD IPS Display G101UAN02.0 with 800nits High Brightness and MIPI Interface.
Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
We can supply total set of display solution:
TFT LCD screen + touch screen + controller board + cables + open frame.
stock for sale
long-time supply
no MOQ
in fulll range
