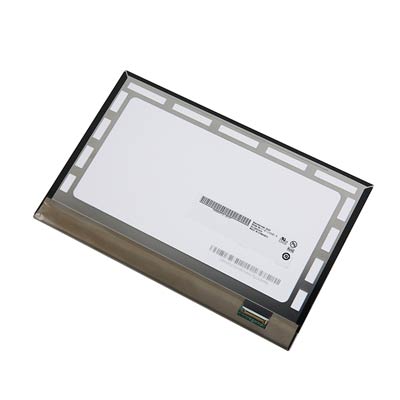

| Manufacturer | AUO |
| Model Name | G101UAN01.0 |
| Screen Size | 10.1 Inch |
| Pixel Number | 1920(RGB)x1200 , WUXGA |
| Active Area(mm) | 216.81 x 135.5 (H×V) |
| Outline(mm） | 228.22 x 148.3 x 5.35 (H×V×D) |
| Pixel Pitch(mm) | 0.11292 x 0.11292 (H×V) |
| Treatment | HC |
| Luminance | 380 cd/m² (Typ.) |
| Contrast Ratio | 800 : 1 (Typ.) (TM) |
| Viewing Angle | 89/89/89/89 (CR≥10) Left / Right/UP /Down |
| Response time | 25 (Typ.)(Tr/Td) ms |
| Display Mode | AHVA , Normally black , Transmissive |
| Color Depth | 16.7M , 52% NTSC |
| Backlight | WLED , 30K hours , with LED Driver |
| Net Weight | 140g |
| Touchscreen | without |
| Signal Type/interface Type | eDP (2 Lanes) , eDP1.2 , 30 pins |
| Voltage Supply | +3.3 V |
| Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: -10 ~ +60 (°C) |
| Package |
BOE Original package; 50 pcs/ctn; size : 445(L) x 283(W) x 377(H)mm |
