Manufacturer | AUO |
Model Name | G101EAN02.1 |
Screen Size | 10.1 inch |
Pixel Number | 1280(RGB)×800 , WXGA |

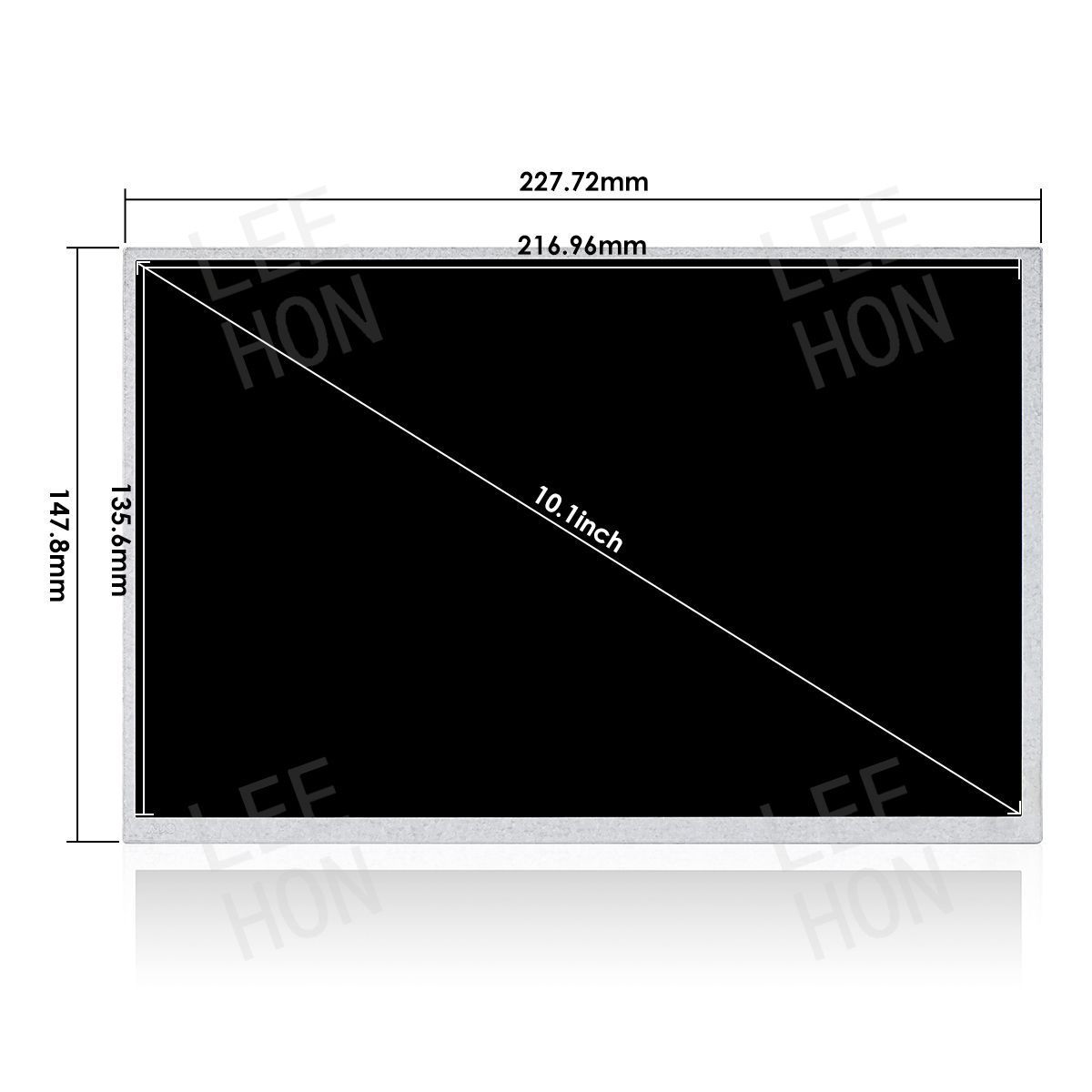

Active Area(mm) | 216.96 × 135.6 (H×V) |
Outline(mm) | 227.72 × 147.8 ×4.8 (H×V×D) |
Bezel Area(mm) | 0.1695 x 0.1695 |
Treatment | HC |
Luminance | 400 cd/m² (Typ.) |
Contrast Ratio | 800 : 1 (Typ.) (TM) |
Viewing Angle |
89/89/89/89 (CR≥10) Left/Right/UP/Down |
Response | 29 (Typ.)(Tr+Td) ms |
Work Mode | AHVA , Normally black , Transmissive |
Color Depth | 16.7M , 50% NTSC |
Backlight | WLED , 20K hours , with LED Driver |
Net Weight | 195g |
Touchscreen | without |
Signal Type/interface Type | LVDS (1 ch, 8-bit) , 40 pins |
Voltage Supply | +3.3 V (Typ./Max.) |
Max. Ratings |
Storage Temp.: -20 ~ +60 (°C) Operating Temp.: -20 ~ +60 (°C) |
Package |
AUO Original package; 40pcs/ carton; size : 575(L) x 328(W) x 257(H)mm |
