The aircraft cabin environment imposes far more demanding requirements on LCD displays compared to standard commercial display equipment. These challenges directly impact display selection and performance.
Physical and Environmental Challenge
Continuous Vibration and Mechanical Shock: Cabin displays must withstand persistent vibrations during takeoff, landing, and turbulence.
Extreme Temperature Variations: Displays must operate reliably within a wide temperature range, typically from -20°C to +70°C, to accommodate extreme heat on the ground and low temperatures at high altitudes.
Pressure Changes and Thermal Management: The low-pressure environment at high altitudes affects traditional cooling solutions, while limited installation space requires displays to maintain stable performance without relying on large cooling modules.
Optical and Electrical Challenges
Complex Lighting Conditions: Displays must deliver excellent optical performance under varying cabin lighting, from direct sunlight to dim lighting during night flights, ensuring clear readability in all conditions.
Electromagnetic Compatibility (EMC): A critical requirement for aviation safety, displays must not interfere with the aircraft’s navigation and control systems.
Energy Efficiency and Thermal Management: Power consumption and weight directly impact operational costs in aviation.
Different cabin displays vary significantly in core parameter selection based on their functional roles and usage scenarios. Understanding these differences is essential for making informed decisions.
Basic Optical Parameters
Brightness: A key factor for readability under complex cabin lighting conditions. Requirements vary by display type:
Public Information Displays: Highest brightness, typically 500–1000 cd/m², ensuring visibility for all passengers.
Seatback Screens: Moderate brightness of 300–400 cd/m², often with automatic brightness adjustment.
Headrest Screens: Balanced brightness of 250–350 cd/m², optimizing energy efficiency and visibility.
Resolution and Pixel Density: Directly impact content clarity and detail. Economy class typically uses HD (1366×768), while business and first class often feature Full HD (1920×1080) or even 4K for high-definition content.
Contrast Ratio: Affects image depth and detail. A contrast ratio of 800:1 or higher delivers vivid images, crucial for movies and safety demonstration videos.
Structural and Reliability Parameters
Viewing Angles: Critical for cabin displays, as passengers view screens from various angles. Ultra-wide 178° viewing angles (using IPS or similar technologies) ensure accurate colors and clarity for all viewers.
Response Time: Impacts the smoothness of dynamic images. A response time of ≤15ms prevents motion blur in fast-moving content, enhancing the viewing experience.
Ingress Protection (IP) Rating: Ensures durability in cabin environments. Front panels should meet at least IP65 standards to resist liquid spills and dust accumulation during cleaning and accidental spills.
Lifespan and Maintainability
Backlight Lifespan: Directly affects maintenance cycles and operational costs. LED backlights typically last over 50,000 hours, reducing maintenance needs and replacement frequency.
Operating Temperature Range: Must be wide enough to accommodate temperature fluctuations during flight. High-quality displays generally operate between -20°C and +70°C, with some critical applications requiring an even broader range.
| Parameter Type | Seatback Screen | Headrest Screen | Public Information Display |
| Public Information Display | 12.1-15.6 inches | 9.7-10.1 inches | 17-24 inches |
| Resolution | FHD (1920×1080) | HD (1280×800) | FHD/4K |
| Brightness Range | 300-400 cd/m² | 250-350 cd/m² | 500-1000 cd/m² |
| Viewing Angle | 178° (IPS/SFT) | 178° (IPS/SFT) | 178° (IPS/SFT) |
| IP Rating | IP65 | IP65 | IP65 |
| Expected Lifespan | 40,000 hours | 40,000 hours | 50,000 hours |
03 Application Scenarios and Selection Recommendations
In aircraft cabins, displays in different locations serve distinct functions, necessitating tailored technical solutions for optimal performance.
Seatback Screen Selection Recommendations
As the most directly interacted display for passengers, seatback screens require a precise balance between visual experience and space utilization.
Size and Resolution should be differentiated by cabin class. A 12.1-inch HD screen is recommended for economy class, providing basic entertainment while controlling costs. Business and first class should utilize 15.6-inch Full HD or 4K screens for a superior visual experience.
Touch Technology selection should consider the usage scenario. Projected Capacitive (PCAP) technology supports multi-touch and gesture operations, catering to modern interactive needs. Infrared touch, conversely, offers advantages in durability and operation with gloves.
Integrated Design is the prevailing trend for modern seatback screens. Ultra-slim designs allow displays to integrate seamlessly into cabin interiors without occupying excessive space.

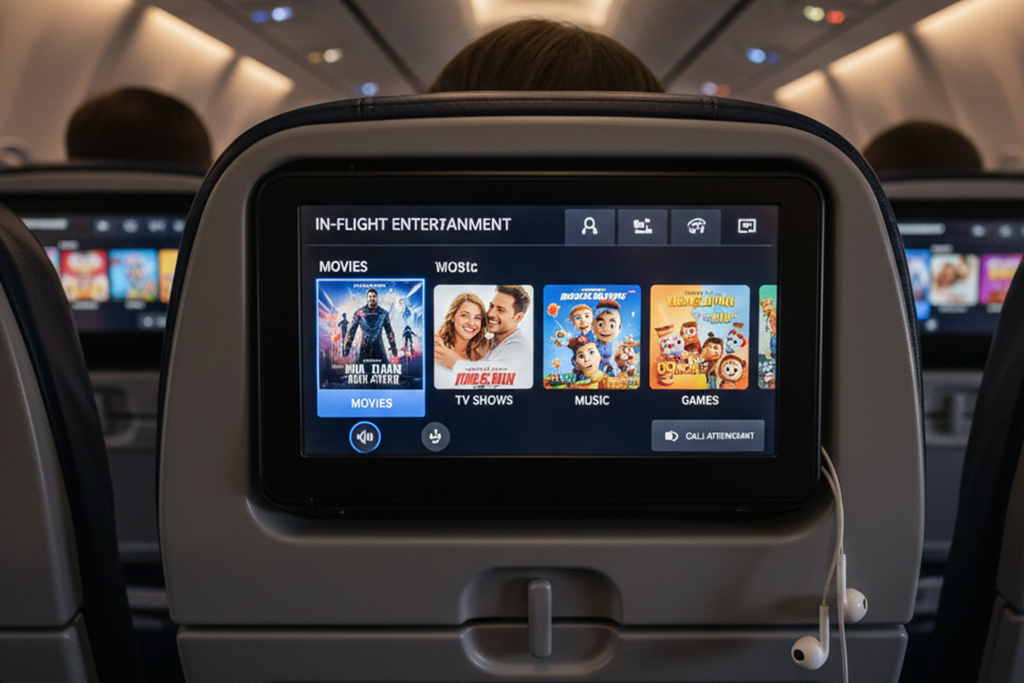

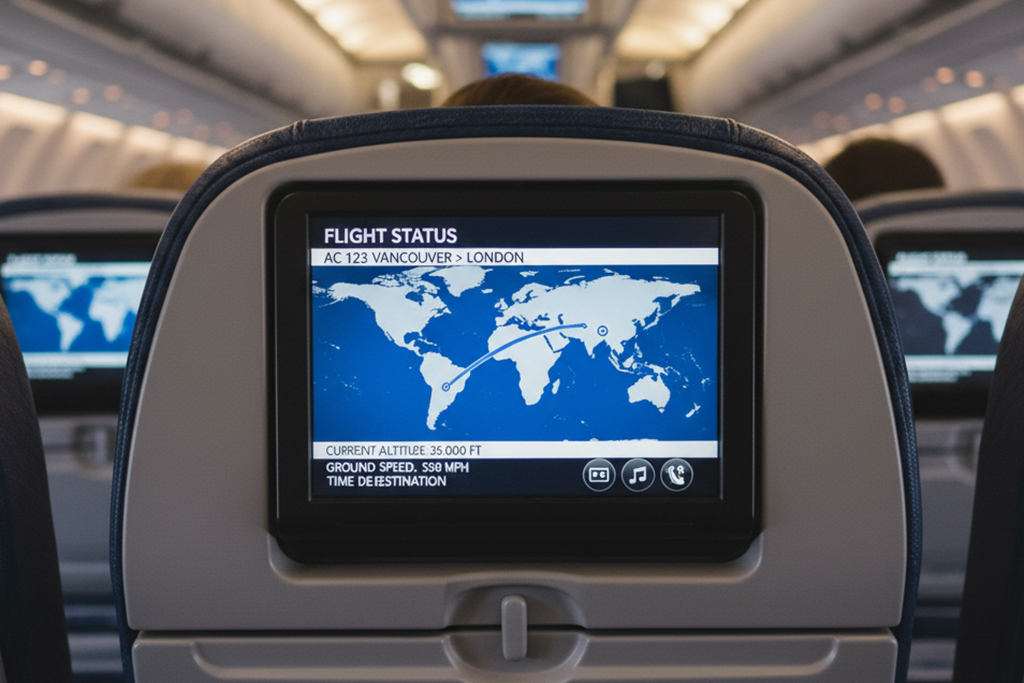

Headrest Screen Selection Recommendations
Headrest screens prioritize space efficiency and energy performance, aiming to maximize functionality within a confined area.
Size Optimization is the primary design consideration. 9.7-inch or 10.1-inch screens with HD resolution are recommended to provide sufficient display detail within the limited space.
Slim and Lightweight Design directly impacts installation feasibility. Select displays with a thickness controlled within the 8-12 mm range and a weight not exceeding 500 grams to avoid excessive burden on the headrest structure.
Power Consumption Control is particularly critical for headrest screens. Utilizing low-power LED backlights and efficient power management, the typical power consumption per screen should be controlled within 5-8W to alleviate the load on the aircraft's electrical system.

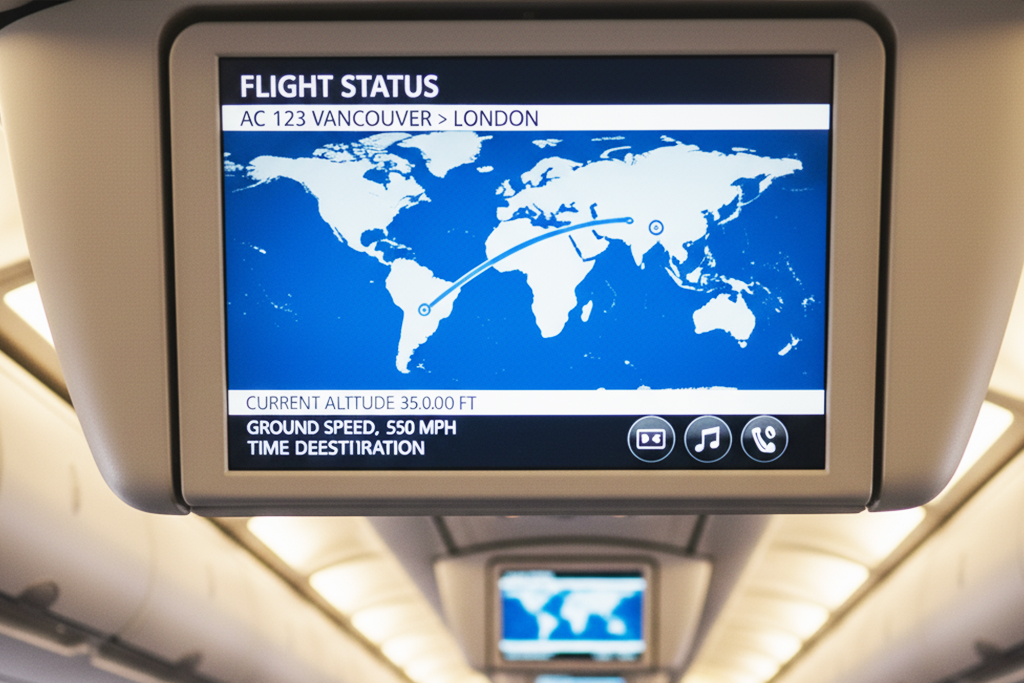

Public Information Display Selection Recommendations
Public information displays prioritize visibility and reliability to ensure all passengers can clearly access important information.
Brightness Configuration is the highest among all cabin displays. A base configuration of 500-700 cd/m² handles complex cabin lighting conditions, while screens intended for direct sunlight areas may require ultra-high brightness exceeding 1000 cd/m².
Reliability Design is a core consideration. An all-metal structure and modular design facilitate quick replacement and maintenance. The Mean Time Between Failures (MTBF) should exceed 50,000 hours to ensure long-term, stable operation.
Interface Compatibility ensures the display can connect to various signal sources. The LVDS interface, known for strong anti-interference properties suitable for long-distance transmission, is the industrial control standard. Additionally, the device should offer various video input interfaces such as VGA, DVI-D, and HDMI to accommodate different signal sources.
04 Brand, Cost, and After-Sales Service
Choosing a suitable cabin display supplier is not merely a product purchase but the establishment of a long-term partnership. It requires a comprehensive evaluation of brand reputation, cost structure, and after-sales service capabilities.
Brand and Supplier Selection
Technical Qualifications are the foundational requirements. It's crucial to assess whether the supplier possesses core display technology and has a proven track record of successful aviation projects.
Quality Systems ensure product consistency. Certifications like ISO 9001 and dedicated aviation quality management processes directly impact product reliability.
Customization Capability addresses specific needs. The ability to provide custom designs—such as special sizes, shapes, or functions—based on specific cabin requirements is a key indicator of a supplier's flexibility.
Cost Considerations
Initial Procurement Cost includes the price of the display units themselves, along with necessary installation accessories and integration expenses. Note that low-cost commercial-grade screens might lead to higher maintenance costs over the long term.
Operational Cost encompasses power consumption and routine maintenance. Low-power design not only reduces the load on the aircraft's electrical system but also lowers fuel consumption, which is particularly important for long-term operations.
Lifecycle Cost is the most comprehensive evaluation metric. This involves assessing the total cost of ownership, including installation, operation, maintenance, and replacement costs over the product's entire lifecycle.
After-Sales Service and Support
Product Lifecycle Alignment with aircraft operational cycles is essential. Aviation projects typically have long operational cycles of 20-30 years. Display suppliers must guarantee long-term, stable product availability, and effective product lifecycle management to ensure operational maintenance for years to come.
Technical Support and After-Sales Service impact operational efficiency. The supplier's ability to provide prompt technical support, comprehensive after-sales service, and repair capabilities directly affects the aircraft's normal operation.
Warranty Policy needs to be clearly defined. Ensure that displays receive prompt repair or replacement during the warranty period to avoid disruptions to flight operations due to equipment failure.
05 Selection Process
A successful cabin display selection requires following a systematic process, where each step—from needs analysis to testing and validation—is crucial.
Needs Analysis Phase
The selection process begins with a detailed needs analysis. First, clearly define the display's installation location and primary function—is it for seatback entertainment or for overhead public information?
Next, consider the usage environment, including temperature extremes, vibration conditions, lighting situations, and spatial constraints. Displays in different locations may face different environmental challenges, requiring corresponding protective features.
Compliance requirements cannot be overlooked. Identify the necessary industry standards and certification requirements, as these are prerequisites for product approval.
Technical Evaluation and Validation
After establishing basic requirements, the next step is technical evaluation. Create a technical parameter matrix to compare different products' performance on key metrics like brightness, contrast ratio, viewing angle, response time, and power consumption.
Sample testing is critical. Verify screen performance under simulated aviation environmental conditions, especially under high/low temperatures, vibration, and strong light. Supplier evaluation includes auditing their quality control systems, industry experience, and after-sales service capabilities.
Integration and Lifecycle Management
Successful display integration requires considering multiple factors. The mounting structure must balance sturdiness with maintenance accessibility. Interface compatibility ensures seamless connection with existing cabin entertainment systems.
Supply chain stability is particularly vital for aviation projects. The display supplier must be able to guarantee long-term, stable supply, and effective product lifecycle management ensures operational maintenance for years to come.
06 Conclusion
In the unique environment of an aircraft cabin, selecting LCD screens is a delicate balancing act between performance, environmental adaptability, and cost. From the entertainment-focused seatback screens, to the space-optimized headrest screens, and the reliability-first public information displays, each type of equipment has its unique technical path and non-negotiable performance thresholds.
The core principle is ensuring the right screen is in the right place, performing the right task—it must meet functional requirements while also considering operational costs and maintenance convenience.
Partnering with experienced suppliers, validating parameter performance based on actual usage scenarios, and establishing robust parameter management and traceability systems are essential to finding the display solution that best ensures flight safety and enhances service quality among the myriad of choices.
