M270HAN01.1

Size:

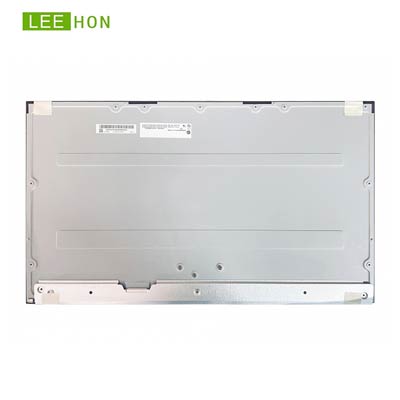

AUO 27 Inch 1920x1080 FHD TFT 16.7M Color Display LVDS LCD Panel M270HAN01.1

  • M270HAN01.1
  • Module No:M270HAN01.1
  • Brand:AUO
  • Size:27 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:250 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: 0 ~ +50 (℃)
  • AUO 27 inch tft lcd panel M270HAN01.1 with 1920x1080 FHD resolution, brightness 250 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for industry.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    AHVA Mode LCD Modules 27 Inch 1920*1080 Full HD TFT Display M270HAN01.1 Support 250 nits, 30 Pin LVDS interface.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.

    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
