DV185WHM-NM0

Size:

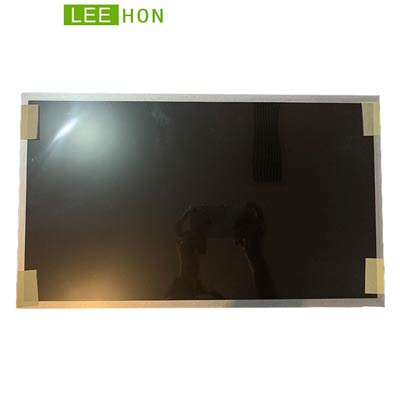

BOE 18.5inch 1366x768 tft lcd screen DV185WHM-NM0 with IPS and backlight time 30000 hours

  • DV185WHM-NM0
  • Module No:DV185WHM-NM0
  • Brand:BOE
  • Size:18.5 inch
  • Resolution:1366(RGB)×768 [WXGA]
  • Brightness:250 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (1 ch, 8-bit) ,30 pins
  • CR:1000:1
  • Operating Temp.: 0 ~ 50 (°C )
  • BOE 18.5 inch tft lcd panel DV185WHM-NM0 with 1366*768 resolution , brightness 250 cd/m².This lcd display is working temperature is 0~ 50 ° C and its storage temperature is  - 20~ 60(° C).Based on its white LED backlight.This model is recommended for industrial use and outdoor highlight.
    Matched Resistive touch and Capacitive touch available.also we have matched HDMI driver board and LVDS cables.

    BOE 18.5inch 1366x768 tft lcd screen DV185WHM-NM0 with IPS and backlight time 30000 hours.


    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
