MV238FHM-N20

Size:

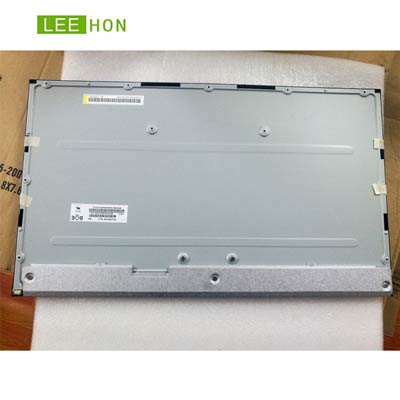

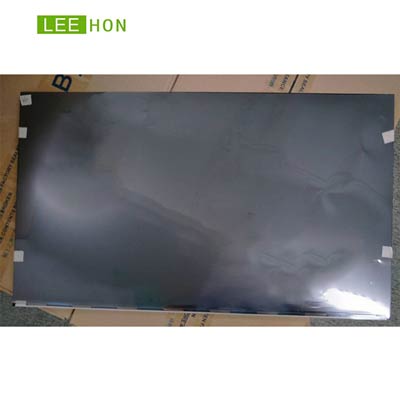

BOE 23.8 Inch HD 1920x1080 LCD Panel TFT LCD IPS Display MV238FHM-N20 250nits and LVDS 30 pins

  • MV238FHM-N20
  • Module No:MV238FHM-N20
  • Brand:BOE
  • Size:23.8 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:250 cd/m²
  • Viewing angle:89/89/89/89 (Typ.)
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: 0 ~ +50 (℃)
  • BOE 23.8 inch tft lcd ips panel MV238FHM-N20 with 1920(RGB)x1080 FHD resolution, brightness 250 cd/m². This lcd display's working temperature is 0 ~ +50 (°C) and it's storage temperature is -20 ~ +60 (°C). Based on it's white LED backlight. This model is recommended for Industrial use.
    Matched resistive touch and capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original BOE 23.8 Inch 1920*1080 Full HD LCD Panel TFT IPS Display MV238FHM-N20 Support good view angle, 250nits, 30 pins LVDS and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China
    mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class),
    PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold
    very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
