GV101WUM-N40

Size:

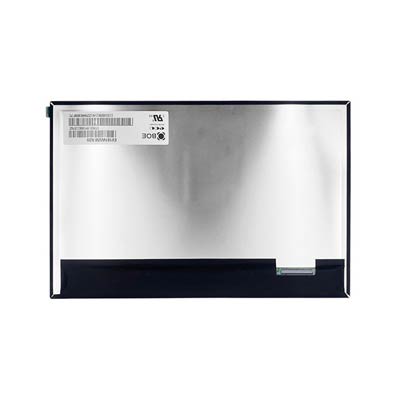

BOE 10.1 Inch 1920x1200 High Resolution TFT LCD Panel MIPI LCM GV101WUM-N40 1000nits high brightness

  • GV101WUM-N40
  • Module No:GV101WUM-N40
  • Brand:BOE
  • Size:10.1 inch
  • Resolution:1920(RGB)x1200 , WUXGA
  • Brightness:1000 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:MIPI (4 data lanes) , eDP1.4 , HBR1 (2.7G/lane) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • BOE 10.1 inch tft lcd panel GV101WUM-N40 with 1920(RGB)x1200 WUXGA resolution, brightness 1000 cd/m². This lcd display's working temperature is -20 ~ +70 (°C) and it's storage temperature is  -30 ~ +80 (°C). Based on it's white LED backlight. This model is recommended for industrial use And Outdoor Highlight.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board.
    High Brightness 10.1 Inch 1920x1200 WUXGA High Resolution TFT LCD Panel For Outdoor GV101WUM-N40 with 1000nits Sunlight Readable, MIPI Interface And Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
