M121GNX2 R1

Size:

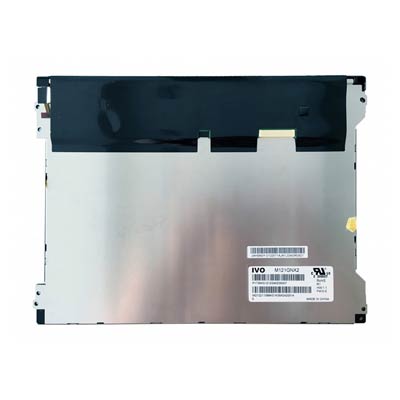

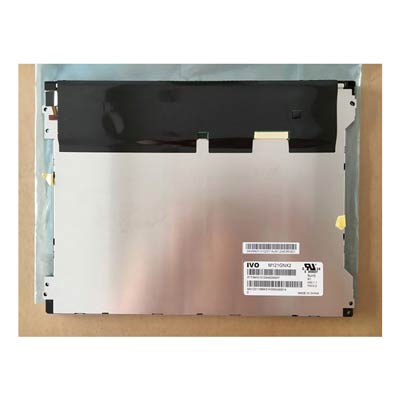

IVO 12.1 Inch 1024x768 XGA TFT LCD Panel Display M121GNX2 R1 350nit and LVDS 20pins

  • M121GNX2 R1
  • Module No:M121GNX2 R1
  • Brand:IVO
  • Size:12.1 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:80/80/80/80 (Typ.)
  • Interface:LVDS (1 ch, 6/8-bit) , 20 pins
  • CR:800:1
  • Operating Temp.: -20 ~ +70 (°C)
  • IVO 12.1 inch TFT LCD Panel M121GNX2 R1 with 1024(RGB)×768 XGA resolution, brightness 350 cd/m². This lcd display is wide working temperature is -20 ~ +70 (°C) and it's wide storage temperature is  -30 ~ +80 (°C). Based on its white LED backlight. This model is recommended for industrial use.

    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Industrial IVO 12.1 Inch 1024x768 XGA TFT LCD Panel LVDS Display M121GNX2 R1 with 350nit, Touchscreen and Controller board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
