DV150X0M-N12

Size:

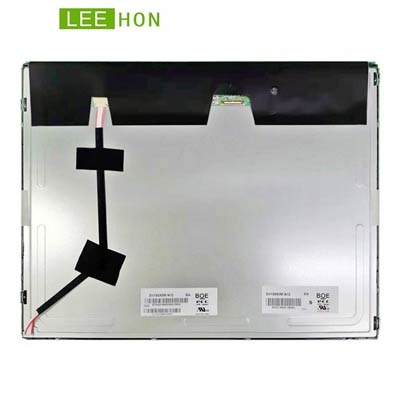

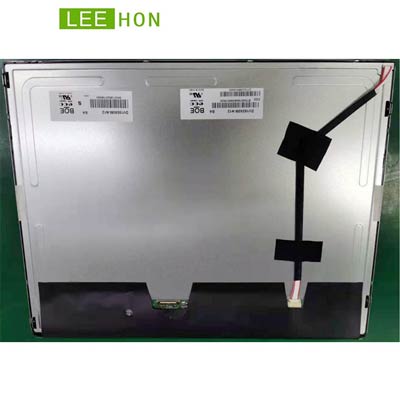

BOE 15 inch 1024x768 TFT LCD Panel IPS Display DV150X0M-N12 With 350nit and eDP Interface

  • DV150X0M-N12
  • Module No:DV150X0M-N12
  • Brand:BOE
  • Size:15 inch
  • Resolution:1024(RGB)×768 , XGA
  • Brightness:350 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:eDP (1 Lane) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • BOE 15 inch tft lcd panel DV150X0M-N12 with 1024x768 XGA resolution, brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is  -20 ~ +70 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and eDP cables.
    Original BOE 15 inch 1024x768 XGA TFT LCD Panel IPS Display For Digital Signage DV150X0M-N12 with 350nit, eDP 30pins And Controller Board.



    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
