QV185FHM-N80

Size:

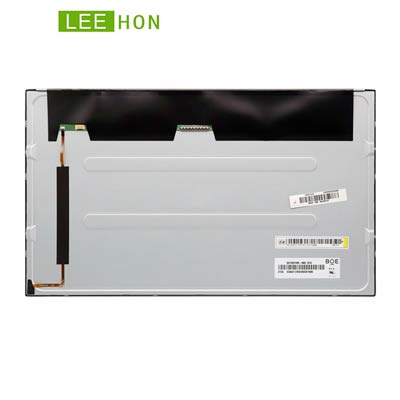

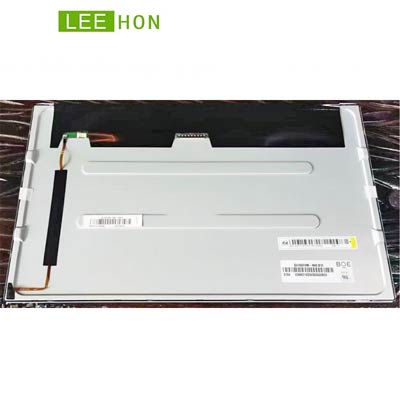

BOE 18.5 Inch 1920x1080 FHD TFT LCD Panel IPS Display QV185FHM-N80 With 350nit and LVDS 30pin

  • QV185FHM-N80
  • Module No:QV185FHM-N80
  • Brand:BOE
  • Size:18.5 inch
  • Resolution:1920(RGB)×1080 , FHD
  • Brightness:350 cd/m²
  • Viewing angle:89/89/89/89
  • Interface:LVDS (2 ch, 8-bit) , 30 pins
  • CR:1000:1
  • Operating Temp.: -20 ~ +70 (°C)
  • BOE 18.5 inch tft lcd panel QV185FHM-N80 with 1920x1080 FHD resolution, brightness 350 cd/m². This lcd display is working temperature is -20 ~ +70 (°C) and it's storage temperature is  -20 ~ +60 (°C). Based on its white LED backlight.This model is recommended for industrial use.
    Matched Resistive touch and Capacitive touch available. Also we have matched HDMI driver board and LVDS cables.
    Original BOE 18.5 Inch 1920x1080 FHD TFT LCD Panel IPS LCD Display For Digital Signage QV185FHM-N80 With 350nit, LVDS 30 pins And Controller Board.




    Hangzhou LEEHON Technology is one of the main agents of AUO/BOE / Kyocera/ Innolux TFT- LCD module in China mainland, founded in 2009, the products vary from 2.5 to 43 inches, which include GD (Industrial grade), AV (car class), PID (General Application) and other related products etc.,superior quality and competitive price, our products are sold very well in North&South America, Western Europe and Southeast Asia.
    We can supply total set of display solution:
    TFT LCD screen + touch screen + controller board + cables + open frame.
    stock for sale
    long-time supply
    no MOQ
    in fulll range
